Interfaces:

HD67563-A1:
1x Profibus DP (Sub-D female connector, 9-pin)
2x Ethernet ports (RJ45 female connector)

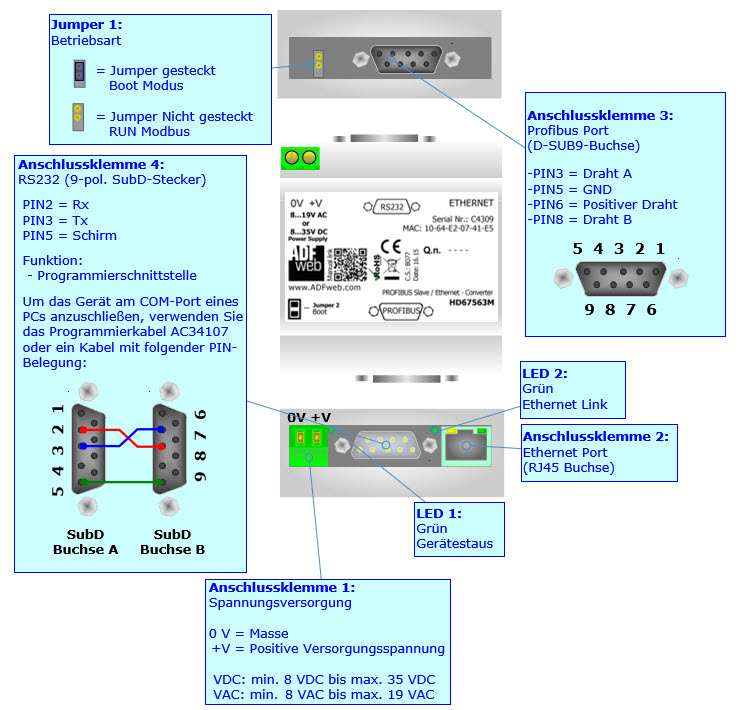

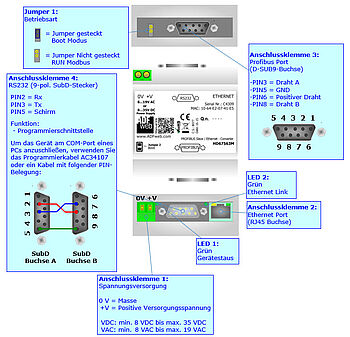

HD67563M:
1x Profibus DP (Sub-D female connector, 9-pin)
1x RS232 (screw terminal, 3-pin)
1x Ethernet port (RJ45 jack)

Data throughput:

Profibus up to 12 Mbps

Electrolytic separation:

>2000 VDC

LED:

HD67563-A1:
6x signal indicators for power and communication

HD67563M:
2x signal indicators for power and communication

Supply:

HD67563-A1:
12 VDC to 35 VDC or
8 VAC to 24 VAC

HD67563M:
8 VDC to 35 VDC or
8 VAC to 19 VAC

Power consumption:

HD67563-A1 / HD67563M: 3.5 watts / VA

Software:

Free configuration software SW67563 for
device parameterization.

Profibus GSD file:

You can generate the required Profibus GSD file using the free configuration software SW67563 from
.

Operating temperature:

-30°C to +70°C.

Humidity:

10% to 80%, non-condensing.

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (W x H x D):

Previous case: 23 mm x 107 mm x 120 mm
New case: 22.5 mm x 90.7 mm x 123 mm

Weight:

about 200 g

Mounting:

Mounting on a DIN rail.

Dimensions (W x H x D):

HD67563-A1:
23 mm x 107 mm x 120 mm

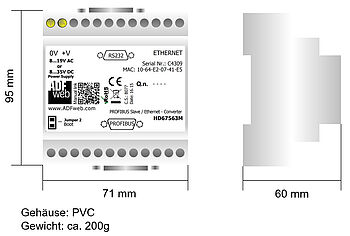

HD67563-A1:
71 mm x 95 mm x 60 mm

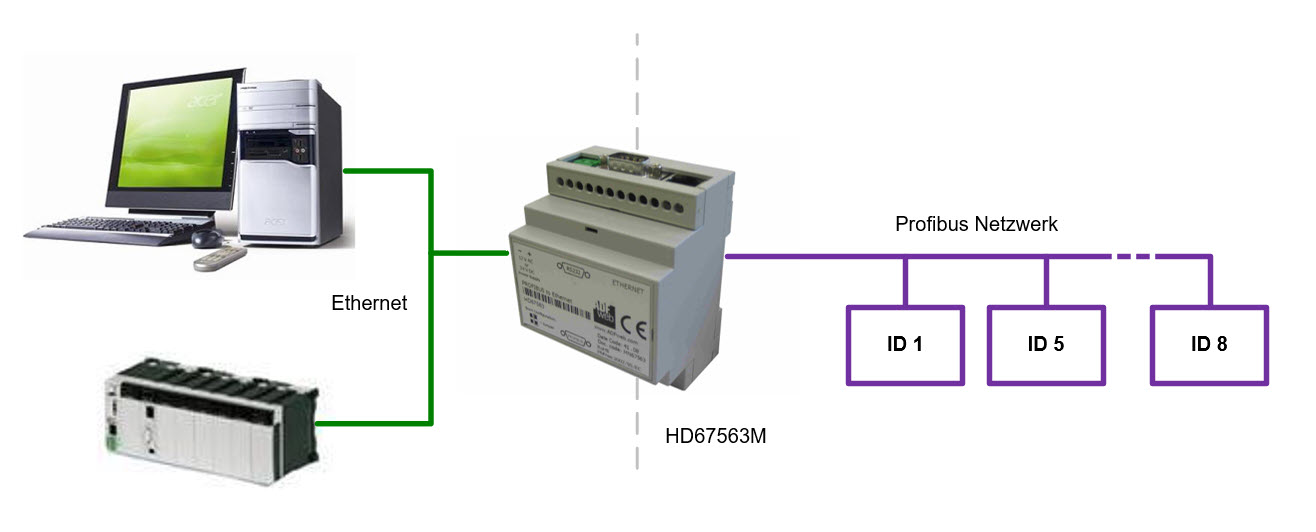

Note:

The product description should always be viewed from the Gateway's perspective.

Masters can be connected to the HD67563-A1 or HD67563M on the Profibus side.

Customs Tariff Number:

8517 62 00
