Interfaces:

1x J1939 (removable screw terminal, 3-pin)
1x Profibus DP (Sub-D socket, 9-pin)
1x RS232 (Sub-D socket, 9-pin; programming interface)

DIP switch:

DIP A: Switch between RUN mode and boot mode
DIP B: Connecting a terminating resistor (120Ohm) on the J1939 side.

LED:

3x signal display for supply and communication

Supply:

8 VDC to 35 VDC or
8 VAC to 19 VAC

Power consumption:

3.5 Watt/ VA

Galv. separation:

>2000 VDC

Software:

Free configuration software SW67553 for
parameterization of the device.

Profibus GSD file:

You can generate the required Profibus GSD file with the free
free configuration software SW67553.

Operating temperature:

-40 °C to +85 °C

Humidity:

10% to 80% , non-condensing.

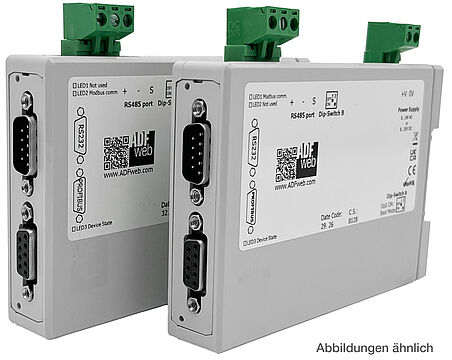

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN rail.

Note:

The article description should always be viewed from the gateway's perspective.

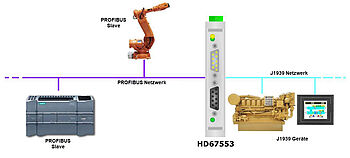

Masters can be connected to the HD67553 on the Profibus side.

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
