EtherCAT Gateway Server (Slave) / Modbus RTU Master
HD67E01-X-A1
Interfaces:
1x Ethernet, 1x EtherCAT IN, 1x EtherCAT OUT,
1x RS232/RS485
- Bidirectional Data Exchange Between EtherCAT and Modbus RTU
- Easy integration by generating an ESI file
- Wide temperature range from -40 °C to +85 °C
- Galvanic isolation
- Project configuration transfer via Ethernet
The HD67E01-X-A1 is an EtherCAT Server (Slave)/Modbus RTU Master Gateway. It enables an EtherCAT client (Master) (such as a Beckhoff PLC, OMRON PLC, etc.) to connect to a Modbus RTU Slave in order to exchange information between the networks. On the EtherCAT side, there are two Ethernet ports for EtherCAT IN and OUT connections: they support both line and ring topologies (for simple redundant communication). Simple and fast integration of the EtherCAT server gateways into the Master configuration thanks to the ESI file created with the SW67E01 software.
Further information about this Gateway is available upon request. Please contact the representatives listed below.

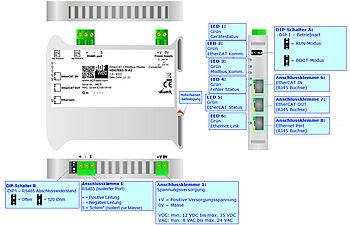

Interfaces:
HD67E01-2-A1:
1x EtherCAT IN (RJ45 jack)
1x EtherCAT OUT (RJ45 jack)
2x Ethernet ports (RJ45 jack)
1x RS232 (removable screw terminal, 3-pin)
No physical network isolation!
Note: Due to the switch function between the Ethernet ports, separate networks may be topologically connected to each other.
HD67E01-5-A1:
1x EtherCAT IN (RJ45 jack)
1x EtherCAT OUT (RJ45 jack)
2x Ethernet ports (RJ45 jack)
1x RS485 (removable screw terminal, 3-pin)
No physical network isolation!
Note: Due to the switch function between the Ethernet ports, separate networks may be topologically connected to each other.
LED:
6x Indicator Lights for Power and Communication
Supply:
12 VDC to 35 VDC or
8 VAC to 24 VAC
Power consumption:
HD67E01-X-A1: 3.5 watts/VA
Software:
Free SW67E01 configuration software for
device parameterization
Last updated:
Minimum update time:
EtherCAT side: 10 µs
Operating temperature:
-40 °C to +85 °C
Humidity:
10% to 80%, non-condensing

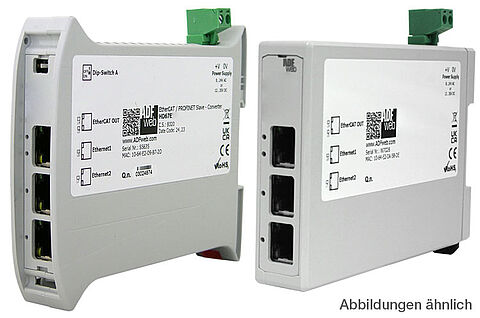

Housing:
Previous housing: PVC
; new housing: PC-ABS

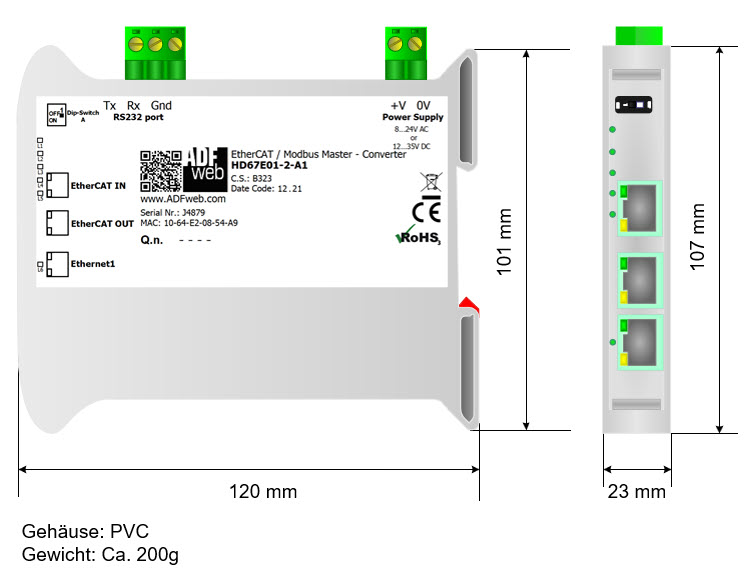

Dimensions (WxHxD):
Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm
Weight:
about 200 g
Mounting:
Mounting on a DIN rail
Customs Tariff Number:
8517 62 00
Manufacturer:
ADFweb.com S.r.l.
Here you can download our Gateways brochure / Securely connecting bus systems in industry & building management.
Download (1.81 MB)
Integration of a device description file in the TIA portal
Version: 2.0
Download (1.71 MB)
Free configuration software SW67E01 for
device parameterization.
By downloading and using software and apps from this website, I agree to the Terms and Conditions and the supplementary Software Clause .
