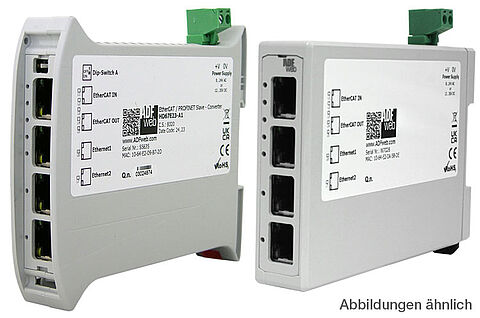

EtherCAT Server (Slave) / Profinet Client (Master) Gateway
HD67E22-A1
Interfaces:
2x Ethernet, 1x EtherCAT IN, 1x EtherCAT OUT
- Bidirectional Data Exchange Between EtherCAT and Profinet
- Easy integration by generating an ESI file
- Wide temperature range from -40 °C to +85 °C
- Galvanic isolation
- Project configuration transfer via Ethernet
The HD67E22-A1 is an EtherCAT Server (Slave)/Profinet Client (Master) Gateway. It enables an EtherCAT client (Master) (such as a Beckhoff PLC, OMRON PLC, etc.) to connect to a Profinet Server (Slave) in order to exchange information between the networks. On the EtherCAT side, there are two Ethernet ports for EtherCAT IN and OUT connections: they support line and ring topologies (for simple redundant communication). Simple and fast integration of the EtherCAT server gateways into the Master configuration thanks to the ESI file created using the SW67E22 software.
Further information about this gateway is available upon request. Please contact the representatives listed below.
Interfaces:
1x EtherCAT IN (RJ45 jack)
1x EtherCAT OUT (RJ45 jack)
2x Ethernet ports (RJ45 jacks)
No physical network isolation!
Note: Due to the switch function between the Ethernet ports, separate networks may be topologically connected to one another.
LED:
7x Signal Indicators for Power and Communication
Supply:
12 VDC to 35 VDC or
8 VAC to 24 VAC
Power consumption:
HD67E22-A1: 3.5 watts/VA
Software:
Free SW67E22 configuration software for
device parameterization
Last updated:
Minimum update time:
(EtherCAT side): 10 µs
(Profinet side): 2 ms
Operating temperature:
-40 °C to +85 °C
Humidity:
10% to 80%, non-condensing
Housing:
Previous housing: PVC
New housing: PC-ABS

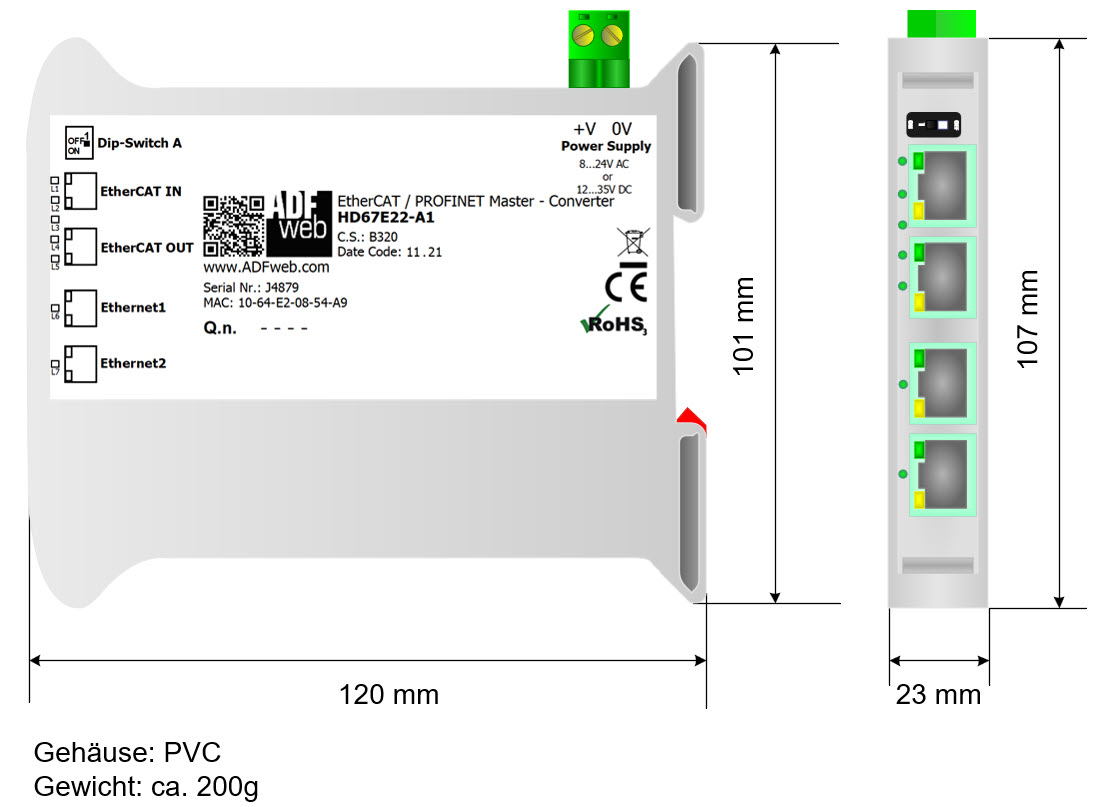

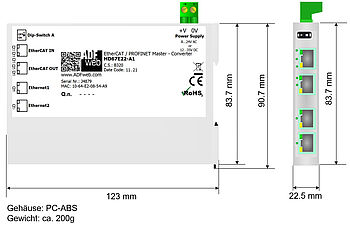

Dimensions (W x H x D):
Previous case: 23 mm x 107 mm x 120 mm
New case: 22.5 mm x 90.7 mm x 123 mm
Weight:
about 200 g
Mounting:
Mounting on a DIN rail
Customs Tariff Number:
8517 62 00
Manufacturer:
ADFweb.com S.r.l.
Here you can download our Gateways brochure / Securely connecting bus systems in industry & building management.
Download (1.81 MB)
Integration of a device description file in the TIA portal
Version: 2.0
Download (1.71 MB)
Free configuration software SW67E22 for
device parameterization.
