PLC programmable I/O controller standard NA9379
CODESYS V3.5 PLC, expandable with the I/O system of the FnIO series.
Delisting
If you have any questions, please contact our technical application consultants.
- Programmable micro PLC (32-bit controller multitasking)
- Programmable with CODESYS V3.5
- Direct diagnostics via LEDs on the fieldbus node
- Modules can be replaced with the wiring in place
- 2 x Ethernet (RJ-45) as a switch

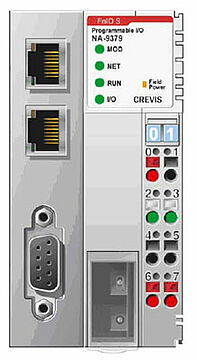

The programmable fieldbus node NA9379 extends the modular, decentralized I/O system of the FnIO series with a PLC. The multitasking-capable 32-bit controller was developed on the basis of the latest technologies in order to guarantee maximum performance and maximum user-friendliness. The LEDs on the front of the device provide a good overview of the current
a good overview of the current device status. The two Ethernet interfaces are designed as a switch and enable a line topology in the network wiring. The serial interface (RS232/RS485) is not only used for communication with serial terminal devices, but also allows basic configuration of the PLC (Modbus RTU slave) with a Modbus RTU master. A start/stop switch and a reset button are located under the cover on the front. The electrical connection is safe and very easy to implement thanks to the patented Crevis clamping technology. The PLC recognizes all types of plugged-in terminals (digital and analogue) and automatically creates the process image.
The NA9379 can be used with all expansion modules in the FnIO series and combines the high flexibility of modular plug-in technology with the performance of a PLC.
Power supply:
Supply voltage: 24 VDC typical
Supply voltage range: 11 VDC to 28.8 VDC
Protection: Output current limitation (min. 1.5 A), reverse polarity protection
Power consumption:
110 mA typical at 24 VDC
Current consumption of the I/O module:
max. 1.5 A at 5 V
Isolation:
System voltage to internal logic: Not isolated
System voltage to I/O driver: Isolated
Field performance:
Supply voltage: 24 VDC typical
Supply voltage range: 11 VDC to 28.8 VDC
Max. Field power Contact:
max. 10 ADC
Weight:
172 g
Operating temperature:
-20 °C to 60 °C
Storage temperature:
-40 °C to 85 °C
Relative humidity:
5 % to 90 % non-condensing
Module dimensions (LxHxW):
54 mm x 99 mm x 70 mm
Node type:
Master & slave node (MODBUS TCP)
Number of extensions for I/O slots:
max. 32 slots
Input variable:
max. 252 bytes (126 words)
Output variable:
max. 252 bytes (126 words)
Baud rate:
10/100 MBit/s, auto-negation, full duplex
Max. Number of nodes:
Limited by the Ethernet specification
Ethernet protocol:
MODBUS/TCP, MODBUS/UDP, HTTP (web server) DHCP,BOOTP
Serial interface:
RS232/RS485 2-port (connection of an operating device possible)
Ethernet interface:
2 x RJ-45 (switch function)
Programming:
CODESYS V3.5 Sp3 Patch 1
Program memory:
256 kByte
Data storage:
48 kByte
Remanent memory:
4 kByte (retain: 2 kByte, marker: 2 kByte)
Real-time clock:
Buffer time: 6 days, accuracy: <2 min./month
