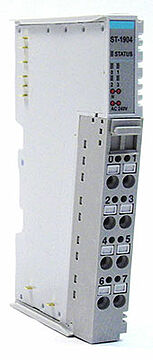

FnIO module 4-channel digital input module, 230 VAC, ST1904
records binary control signals from the field, e.g. from sensors, encoders, switches or proximity switches.
Delisting
If you have any questions, please contact our technical application consultants.
- The digital input module has 4 channels in 2-wire connection technology.
- The digital input module records binary control signals.
- The signal states of the channels are displayed with one green status LED per channel.
- The field and system levels are electrically isolated from each other.
The 4-channel digital input module has 4 channels in 2-wire connection technology with a width of only 12 mm.
It records binary control signals from the field, e.g. from sensors, encoders, switches or proximity switches.
The module has a removable connection level (terminal blocks) which enables the direct connection of single-wire conductors.
Each input channel is preceded by an RC filter with a time constant of 1.5 ms for interference suppression.
The signal status of each channel is indicated by a green status LED.
Power supply:
Via system voltage 5 VDC
Power consumption:
max. 35 mA at 5 VDC
Cross sections:
I/O cable max. 2 mm²
Connection technology:
Removable connection level (terminal blocks)
Dimensions (WxHxL):
12 mm x 99 mm x 70 mm
Operating temperature:
-20 °C to 60 °C
Operating altitude:
max. 2,000 m
Assembly:
DIN rail
Number of inputs:
4 channels
Indicators:
4 x green for status, 1 x green/red for FnBus status
Signal voltage (0):
max. 130 VAC
Signal voltage (1):
240 VAC typical, min. 170 VAC to max. 264 VAC
Input current (1):
max. 12 mA/channel at 264 VDC
Input signal response time:
max. 10 ms
Input impedance:
22 kOhm
