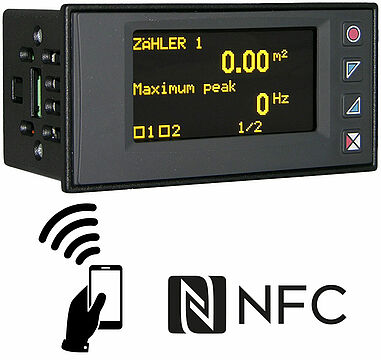

Counter/Speedometer ZTA9648O
with OLED display
Display Type: OLED
Display Color: Monochrome (Yellow)
- Counter/Speedometer in 96 x 48 mm format
- Programmable via app and keypad
- 2.42" monochrome yellow OLED display
- 4 alarm outputs
- Sensor power supply
- 5-language selection
- 2 programmable user inputs
- Serial communication via RS485 Modbus RTU interface
The new ZTA9648O, featuring a brilliant OLED display, is a digital counter/tachometer designed to connect to all standard sensors. The inputs can process NPN and PNP sensors as well as potential-free contacts, which are typically found in proximity sensors, flow sensors, and rotary encoders. With a maximum input frequency of 100 kHz, the counter is suitable for very high-speed applications. The ZTA9648O has four independent count inputs (Counter 1 and Counter 2; Counter 1 includes a tachometer function), and the counters have a resolution of 64 bits. The display scales the font size according to the number of digits to be displayed. The desired unit of measurement can be freely selected. The display has 4 outputs (2x relays and 2x PNP); these are freely configurable and can be assigned to the counter/tachometer.
The RS485 serial interface enables networking in a Modbus RTU network and remote access. (Slave connection based on the Modbus RTU protocol). In addition to its very shallow mounting depth, IP54-rated front panel, removable terminal blocks, and text-menu-driven programming interface, this display stands out thanks to its monochrome yellow OLED display. This ensures optimal readability and an extremely wide viewing angle in challenging industrial environments, even in direct sunlight. The visualization is freely configurable from one value per page up to four values per page, leaving nothing to be desired for the user. With the Wachendorff EMG app, you’ll discover a whole new way to configure the meter/tachometer. The Wachendorff EMG app has currently been developed only for Android operating systems; other operating systems, such as Apple iOS, are not currently supported by the app. Development of a Wachendorff EMG app for iOS operating systems has already begun. The app allows you to read, write, program, and manage your Wachendorff devices with an NFC interface. When connected via NFC, the meter/tachometer is automatically detected and the app opens. To do this, simply hold your smartphone in front of the meter/tachometer for a few seconds. Once the existing parameters have been successfully read, you can then view each parameter individually and change them as needed. You can also easily save the read configuration to your smartphone and reload it at any time. After you’ve changed the desired parameters, you can load the new configuration into the device. You can also send the saved configuration file (.atr backup file) via email, SMS, WhatsApp, Bluetooth, Wi-Fi Direct, etc. You can save configurations on the optional USB programming module (SFUR0USB) and then transfer them to other devices—ideal for batch commissioning.
Display Properties:
Monochrome yellow 2.7” OLED display, display diagonal: 61.46 mm
Active display area: 55 mm x 27.5 mm, 128 x 64 pixels.
Service life: 150,000 hours*
*Note: The end of service life is defined as when 50% of the initial brightness is reached. The average service life is specified at room temperature; service life is reduced when used in higher temperature ranges.
Advertisement:
Display configurable via parameters from 1 to 4 values per page.
Automatic selection of the maximum display font size
Up to 12 display values selectable from counter value, tachometer, setpoint
Digital Inputs:
2x counter inputs I1, I2: Configurable as PNP/NPN/push-pull/line driver; maximum 100 kHz
2x general-purpose inputs I3, I4: Configurable as PNP/NPN.
Counter Resolution
The pulse count variables are 32-bit for encoders and 64-bit for forward/reverse counters.
The variables that contain the counter values are all 64-bit.
Range of the 32-bit variables:
-2,147,483,648 to +2,147,483,647
Range of the 64-bit variables:
-9,223,372,036,854,775,808 to +9,223,372,036,854,775,807
Indicators:
Four indicators for alarm conditions and serial communication.
Keyboard:
4 buttons for programming and setting up/configuring the display.
Input frequency:
Max. 100 kHz
User Inputs:
2x general-purpose inputs I3, I4: PNP/NPN configurable
Sensor Power Supply:
Depending on the supply voltage and output voltage, the following currents are possible for the sensor supply voltage:
Supply voltage: 24 VDC; Output voltage +12 VDC @50mA
Supply voltage: 24 VDC; Output voltage +24 VDC @20 mA
Supply voltage: 24 VAC; Output voltage +12 VDC @50 mA
Supply voltage: 24 VAC; Output voltage +24 VDC @20 mA
Power supply: 115 VAC; Output voltage +12 VDC @50 mA
Power supply: 115 VAC; Output voltage +24 VDC @50 mA
Power supply: 230 VAC; Output voltage +12 VDC @50mA
Power supply: 230 VAC; Output voltage +24 VDC @50mA
Solution:
Internal resolution of 65,535 steps (16 bits).
Digital Outputs:
2x PNP; 12/24 VDC @25 mA
Relay outputs:
2 normally open contacts with isolated ground, 2 A at 250 VAC, resistive load.
Can be programmed as normally open or normally closed contacts.
Serial interface:
RS485 interface (Modbus RTU Slave)
Adjustable from 1,200 to 115,200 baud; electrically isolated
USB interface:
1x Micro USB
The device can be configured using an SFUR0USB USB programming module (NOT included). Ideal for serial commissioning.
Power supply:
24 VAC/DC to 230 VAC/DC ±15%, 50/60 Hz
Power consumption:
8 watts/VA
Galvanic isolation:
2.5 kV
Protection Class:
Water-resistant and dust-tight to IP54 on the front (with gasket); IP20 protection rating on the back.
Housing:
Polycarbonate V0 plastic housing
Front cover: silicone rubber

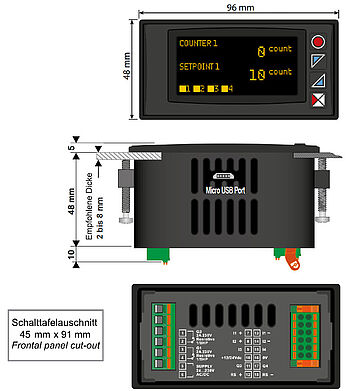

Dimensions (WxHxD):
96 mm x 48 mm x 48 mm (without terminal blocks)
96 mm x 48 mm x 58 mm (with terminal blocks)
Panel cutout per DIN: 91 mm x 45 mm.
Mounting via lockable plastic clamping brackets with screws.
(Recommended mounting plate thickness: 2 mm to 8 mm)

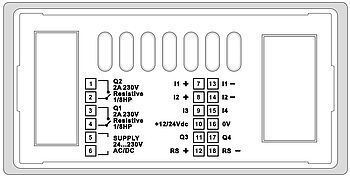

Connection:
About pluggable, lockable screw terminals.
Environmental Conditions:
Operating temperature: 0 °C to +45 °C; relative humidity: 35% RH to 95% RH.
Maximum altitude: 2,000 m
Programming:
Programming and operation are menu-driven via the front buttons and text, and the system can be switched between 5 languages (English, Italian, German, French, Spanish). All settings are protected by a 4-digit password (which cannot be changed). Additionally, programming is possible via the Wachendorff EMG app (via NFC/RFID*) for Android smartphones. For programming via the app, the meter/tachometer can be in a de-energized state. The Wachendorff EMG app is currently only compatible with Android operating systems. A Wachendorff EMG app that supports iOS operating systems will be available soon.
*: When queried by a reader that supports the NFC-V protocol, the device is to be considered a VICC (Vicinity Inductively Coupled Card) in accordance with the ISO/IEC 15693 standard. The controller operates at a frequency of 13.56 MHz. The device does not emit radio waves on its own.
You can save configurations on the optional SFUR0USB USB programming module and then transfer them to other devices.
Programming Note:
The NFC sensor is located on the right side of the display, behind the buttons.
Smartphone cases can interfere with the connection and should therefore be removed from the smartphone while programming.
Weight:
about 165 grams
What's Included:
Device, mounting hardware, gasket
Customs Tariff Number:
8542 31 90
Manufacturer:
Wachendorff Prozesstechnik GmbH & Co. KG
