HTML5 WebPanel, 7", 1024 x 600 LCD, cMT3072XP(W)
HTML5 WebPanel, 7", 1024 x 600 LCD, quad-core CPU
- 7-inch 1024 x 600 LCD
- Fanless cooling system
- Integrated 4 GB flash memory
- Wide input voltage range: 24±20% VDC
- IP66 front panel, NEMA 4 compliant
- Powerful and versatile Chromium browser
The cMT3072XP(W) is a compact 7-inch HTML5 WebPanel for the web-based visualization and control of machines, plants, and systems. The integrated Chromium browser allows direct access to modern HTML5 web applications without the need for an additional computer.
The 7-inch WVA display, with a resolution of 1024 × 600 pixels and a capacitive touchscreen made of tempered glass, enables comfortable and intuitive operation. With 1 GB of RAM, 4 GB of flash memory, a quad-core RISC processor, and two Ethernet ports, the WebPanel provides a powerful foundation for industrial web applications.
Advertisement:
Size: 7" WVA LCD
Resolution: 1024 × 600 pixels
Brightness: 550 cd/m²
Contrast: 800 : 1
Backlight lifespan: >30,000 hours
Colors: 16.7 million
LCD viewing angles (up/down/left/right): 85/85/85/85
Touchscreen:
Tempered glass, capacitive type / 7H
Storage:
Flash: 4 GB
RAM: 1 GB
Processor:
Quad-core RISC

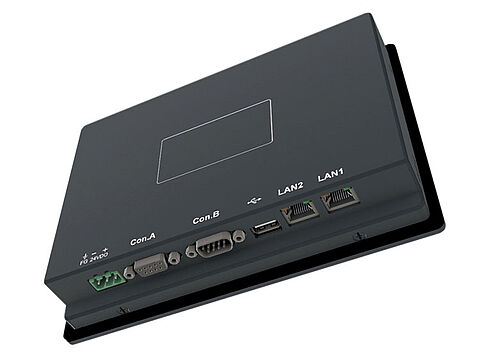

Interfaces:
XML-PH-0002@deepl.internal Ethernet:
LAN1: 1 x 10/100/1000 Base-T
LAN2: 1 x 10/100 Base-T
COM Port: No
CAN Bus: No
Audio Output: No
Power supply:
Input voltage: 24±20% VDC
Electrical isolation (between input and system voltage): built-in
Current consumption: 820 mA @ 24 VDC
Withstand voltage: 500 VAC (1 min.)
Insulation resistance: >50 MOhm at 500 VDC
Vibration resistance: 10 Hz to 25 Hz (X, Y, Z directions, 2 g, 30 minutes)
Printed Circuit Board Coating:
Yes, PCB
Housing:
Plastic housing

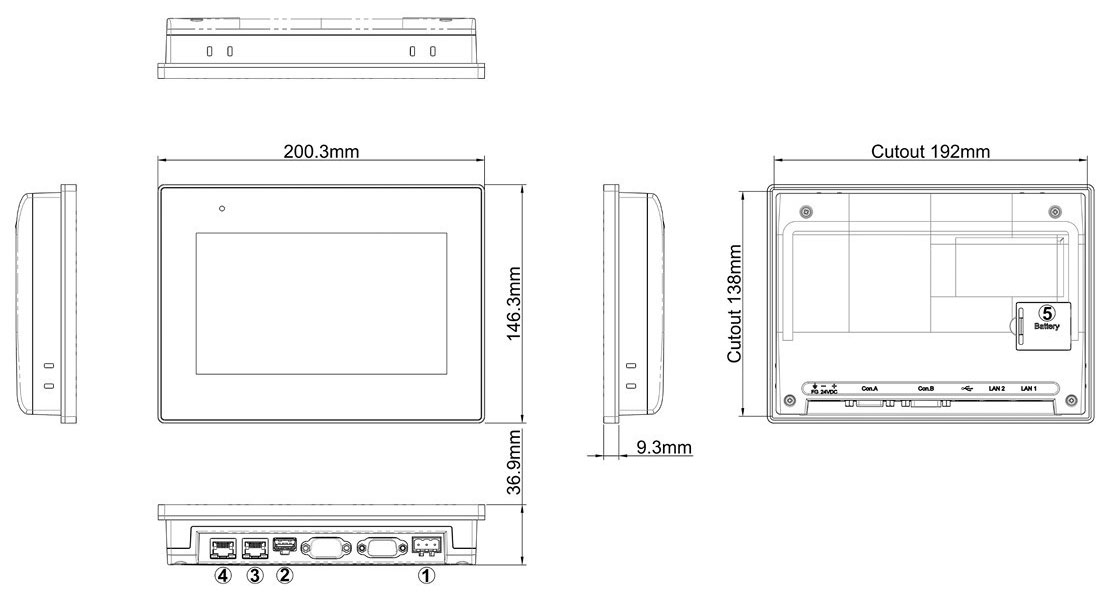

Dimensions (WxHxD):
200.3 mm x 146.3 mm x 36.9 mm
Panel cutout: 192 mm x 138 mm
Weight:
about 0.7 kg
Mounting:
Panel Mounting
Protection Class:
Front panel compliant with UL Type 4X (for indoor use only) / NEMA 4 / IP66
Ambient temperature:
Operating temperature: 0 °C to +55 °C.
Storage temperature: -20 °C to +60 °C.
Relative humidity: 10% to 90% (non-condensing)
Certificates:
CE-marked
, cULus
Software:
Chromium 132 (upgradable)/does not support websites with Java applets or the Java SDK. )
EasyAccess 2.0 license optional
Customs Tariff Number:
85371098
Manufacturer:
Weintek Labs, Inc.
