Display:

Size: 15.6 inch wide viewing angle (WVA)
Resolution: 1920 x 1080 pixels
Brightness: 500 cd/m²
Contrast: 1500 : 1
Backlight: LED
Backlight life: >50.000 hours
Colors: 16.2 million
LCD Viewing angle (up/down/left/right): 85/85/85/85
Pixel pitch (mm): 0.17925(H) x 0.17925(V)

Touch display:

Type: 4-wire analog resistive.
Accuracy: Active range length (X) ±2 %, width (Y) ±2 %

Memory:

Flash: 4 GB
RAM: 1 GB

Processor:

Quad-core RISC

Interfaces:

SD card slot: No
USB Host: 1x USB 2.0
USB Client: No
Ethernet: 1 x 10/100/1000 Base-T, 1 x 10/100 Base-T
COM Port:
Port A: COM1 RS485 2-/4-wire, COM3 RS485 2-wire
Port B:COM1 RS-232 4-wire, COM3 RS-232 2-wire
MPI is supported
RS485 Isolation: No
CAN Bus: No
HDMI: No
Audio Output: Integrated mono speaker

Real-time clock:

Integrated real-time clock RTC

Power supply:

Input voltage: 24±20% VDC
Galvanic isolation : integrated
Current consumption: 900 mA at 24 VDC
Dielectric strength: 500 VAC (1 min.)
Insulation strength: >50 MOhm at 500 VDC
Shock resistance: 10 Hz to 25 Hz (X,Y,Z direction 2 g 30 minutes)

Printed circuit board coating:

Yes, PCB

Housing:

Aluminum housing

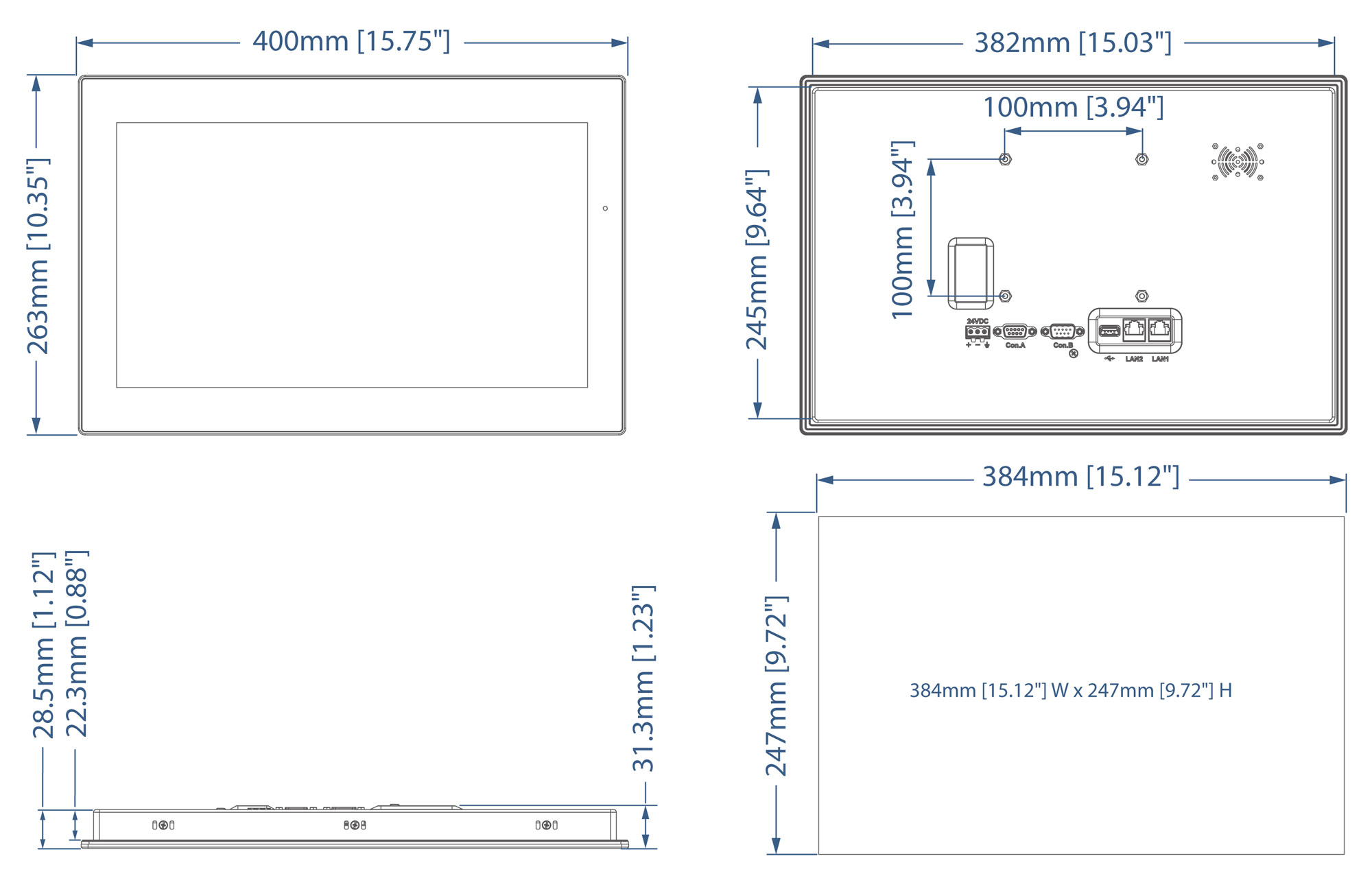

Dimensions (WxHxD):

400 mm x 263 mm x 31.3 mm
Panel cut-out: 384 mm x 247 mm

Weight:

approx. 2.1 kg

Fastening:

Panel mounting
VESA mount 100 x 100 mm

Protection class:

NEMA 4 / IP66 Front

Ambient temperature:

Operating temperature : 0 °C to +55 °C.
Storage temperature: -20 °C to +60 °C.
Relative humidity: 10 % to 90 % (non-condensing)

Certificates:

CE

Software:

Wine cloud: EasyAccess 2.0 (optional), Dashboard (optional)
CODESYS: (optional)
EasyBuilder Pro : from Pro V6.10.01

Customs tariff number:

85371098

Manufacturer:

Weintek Labs, Inc
