Headless HMI cMT-SVRX-822
cMT-SVRX-822, Headless HMI Server for web and database connection
- Supports cMT Viewer
- Supports OPC UA Server
- 3 COM ports, 2 Ethernet ports, 1 USB host port, 1 microSD slot
- Integrated 4 GB flash memory and 1 GB RAM
- Fanless cooling system
- Integrated EasyAccess 2.0 license
The cMT-SVRX-822 from Weintek is a headless HMI Server without its own display for central process visualization and data integration. With a quad-core RISC CPU, 4 GB flash memory and 1 GB RAM, it guarantees stable performance for web and database applications. The device offers interfaces such as 2× Ethernet, USB host, micro SD slot and serial COM-Ports (RS-232/RS-485) for connection to networks and devices. It is mounted via a 35 mm DIN rail and EasyAccess 2.0 is already integrated so that remote access and Cloud connection can be used directly.
Memory:
Flash: 4 GB
RAM: 1 GB
Processor:
Quad-Core RISC
Interfaces:
SD card slot: 1 x Micro SD
USB host: 1 x USB 2.0
USB client: No
Ethernet: LAN 1: 1 x 10/100/1000 Base-T, LAN 2: 1 x 10/100 Base-T
COM port: COM1: RS-232 2-wire, COM2: RS-485 2-/4-wire, COM3: RS-485 2-wire
RS485 isolation: No
CAN bus: No
HDMI output: No
Audio output: No
Power supply:
Input voltage: 24 VDC + 20 %
Voltage isolation: integrated
Current consumption: 850 mA at 24 VDC
Dielectric strength: 500 VAC (1 min)
Insulation strength: greater than 50MOhm at 500 VDC
Specifications:
PCB Circuit board coating: Yes
Housing: Plastic

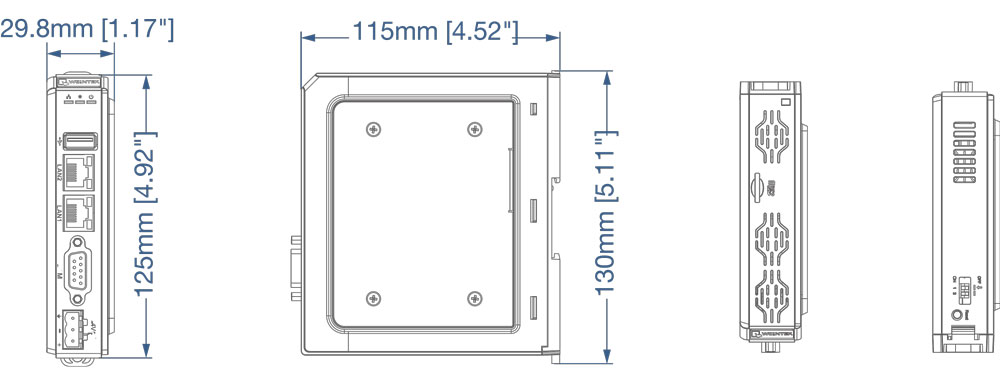

Dimensions (WxHxD): 29.8 x 130 x 115 mm
Weight: approx. 0.24 kg
Mounting: 35 mm DIN rail mounting
Ambient conditions:
Operating temperature: 0°C to 50°C
Storage temperature: -20 °C to +60 °C
Relative humidity: 10% to 90% (non-condensing)
Vibration resistance: 10 to 25 Hz (X, Y, Z direction, 2g for 30 min.)
Protection class:
IP20
Certificates:
CE
cULus listed
Software:
EasyBuilderPro from V6.09.02
EasyAccess 2.0 license (integrated)
Dashboard (optional)
CODESYS® (optional)
Customs tariff number:
85371098
Manufacturer:
Weintek Labs, Inc
