Interfaces:

1x RS232 (Sub-D connector, 9-pin)
1x RS485 (removable screw terminal, 3-pin)
1x Profibus DP (Sub-D socket, 9-pin)

Note: Depending on the dimensions of the Profibus connector and RS232 connector, it may not be possible to fit both connectors at the same time.
When using the plugs, ensure that they have a narrow design.

Serial data rate:

max. 115.2 Kbps

Profibus DP data rate:

max. 12 Mbps (auto baud rate)

Galv. separation:

>2,000 VDC

LED:

3x signal display for supply and communication

Supply:

8 VDC to 35 VDC or
8 VAC to 19 VAC, 50/60 Hz

Power consumption:

4 Watt / VA

Software:

Free configuration software SW67045 for
parameterization of the device.

Profibus GSD file:

You can generate the required Profibus GSD file with the free
free configuration software SW67045.

Operating temperature:

-40°C to +85°C.

Humidity:

10% to 80%, non-condensing

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN top-hat rail.

Note:

The article description should always be viewed from the gateway's perspective.

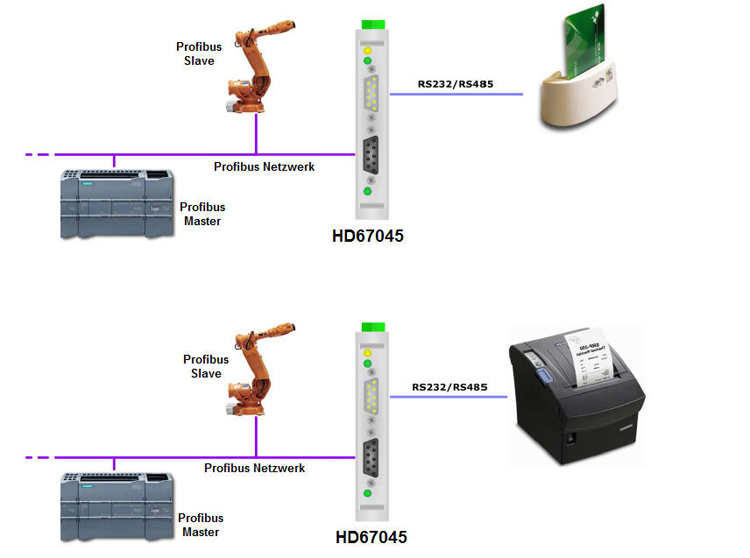

You can connect masters to the HD67045-A1 on the Profibus side.

Customs tariff number:

8517 62 00
