Interfaces:

2x CANopen (removable screw terminal, 3-pin)

Max. Distance:

5,000 m for 10 kbps
25 m for 1 Mbps

Possible baud rates:

10 Kbps, 20 Kbps, 50 Kbps, 62.5 kbps, 100 Kbps, 125 Kbps, 250 Kbps, 500 Kbps, 800 Kbps, 1,000 Kbps

Gal. separation:

1 KV

Standard:

ISO 11898-1

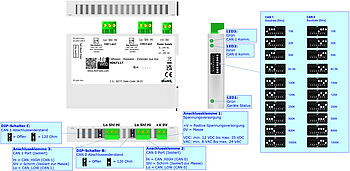

DIP switch:

8 pieces for setting the different baud rates.
From hardstand C.S.: B277 and with the new housing:
1 DIP switch each for setting the terminating resistor CAN0 & CAN1

LED:

3x signal display for supply and communication.

Supply:

12 VDC to 35 VDC, 3.5 watts
8 VAC to 24 VAC, 3.5 VA, 50/60 Hz

Operating temperature:

-40 °C to +85 °C

Humidity:

10 % to 80 % , non-condensing

CE conformity:

EN61000-6-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, ENV50204

EMV Directive:

EMC2004/108/CE

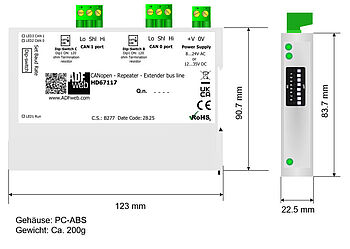

Dimensions (WxHxD):

Previous housing:
23 mm x 107 mm x 120 mm

New housing:
22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Housing:

PVC

Fastening:

Mounting on the DIN rail

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
