Interfaces:

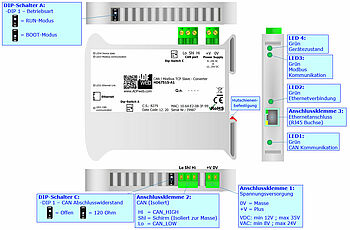

HD67515-A1:
1x Ethernet port (RJ45 socket)
1x CAN 2.0A & 2.0B (removable screw terminal, 3-pin)

HD67515-B2:
1x Ethernet port (RJ45 socket)
1x CAN 2.0A & 2.0B (screw terminal, 3-pin)

CAN data rate:

Max. 1 Mbps

LED:

HD67515-A1:
4x signal display for supply and communication

HD67515-B2:
5x signal display for supply and communication

Supply:

12 VDC to 35 VDC or
8 VAC to 24 VAC, 50/60 Hz

Power consumption:

3.5 Watt / VA

Software:

Free configuration software SW67515 for
parameterization of the device.

Supported function codes:

03, 04, 06, 16

Operating temperature:

-40 °C to +85 °C

Humidity:

10% to 80%, non-condensing

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

HD67515-A1:
Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

HD67515-B2:
71 mm x 95 mm x 60 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN top-hat rail.

Note:

The item description should always be viewed from the perspective of the gateway.

Clients (masters) can be connected to the HD67515-A1 / HD67515-B2 on the Modbus TCP side.

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
