Power supply:

9 VDC to 36 VDC

Power consumption:

40 W

Display:

12.1" TFT LCD

Resolution:

800 x 600 pixels (1024 x 768 optional)

Aspect ratio:

4:3

Brightness:

450 cd/m² (500)
1000 cd/m² (optional high-brightness LCD)

Backlight:

Standard: 50,000 h runtime, 30,000 h runtime
Optional High Brightness: 50,000 h runtime, 70,000 h runtime

Colors:

Standard: 16.7 M, 16.2M is optional
Optional High Brightness: 16.7M, 16.2M is optional

Reading angle:

Standard : H: 176° / V: 176°, H: 178 / V: 178
Optional High-Brightness: H: 176° / V: 176°, H: 178 / V: 178

Touch screen:

Resistive touch

Processor:

Intel Celeron J6412 Processor (2.0 GHz, 1.5MB L2 cache)

RAM:

1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz

SSD/HDD:

1 x M.2 B-Key slot; (Support SATA3; 2242/2280)

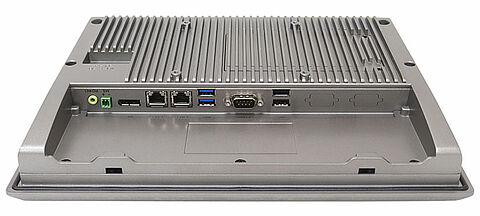

Interfaces:

USB: 2 x USB 3.2 Gen2 type A / 2x USB 2.0 type A
Serial: COM1: RS232 / RS422 / RS485
Ethernet: 2x 2.5 GbE, RJ45
Audio: Audio output
Power supply: 1 × 3-pin terminal block, 1 × 2-pin power switch connection

Expansion slots

1 x Mini PCIe slot
1 x M.2 E-key
1 x Nano SIM card slot

Housing:

Die-cast aluminum

Assembly:

VESA 75 x 75; panel mounting

Protection class:

IP66 on the front

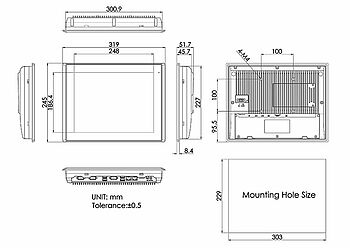

Dimensions (WxHxD):

319 mm x 245 mm x 51.7 mm

Weight:

2.73 Kg

Ambient conditions:

Operation: 0 °C to +50 °C (optionally -20 °C to +60 °C)
Storage: -30 °C to +70 °C
10% to 95 %.r.h., non-condensing.

Certifications:

CE/FCC Class B/UL

Operating systems:

^Windows® 10 IoT
^Windows® 11 IoT

Options:

Extended temperature range -20 °C to +60 °C
VESA mount

4G LTE / WLAN (Wi-Fi 4/5/6+) / Bluetooth
4 × USB 2.0 type A (TB-528U4)
4 × USB 2.0 type A + 1 × Mini-PCIe + 1 × SIM card slot (TB-528U4ME1)
2 × COM (RS-232) (TB-528C2)
1 × COM (RS-232) + 2 × USB 2.0 (TB-528C1U2)
1 × COM (RS-232) + 2 × USB 2.0 + 1 × on/off switch (TB-528C1U2P1)
2 × COM (RS-232) + 1 × Mini PCIe slot + 1 × SIM card slot (TB-528C2ME1)
2 × COM (RS-422/485, galvanically isolated) (TB-528C2I)
2 × CAN (TB-528CAN2)
1 × LAN + 2 × USB 2.0 type A (TB-528E1U2)
1 × 2-watt loudspeaker
1 × automatic brightness adjustment
1 × LAN (45 W, galvanically isolated PoE) + 2 × USB 2.0 type A (TB-528E1U2UPOE)
1 × backup battery 21 W / 10.8 V / 1.95 Ah (3S1P)

With the TB-528 series, either a speaker or a backup battery can be installed, but not both at the same time.

Scope of delivery:

Device
1 x power supply unit
1 x mounting material

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
