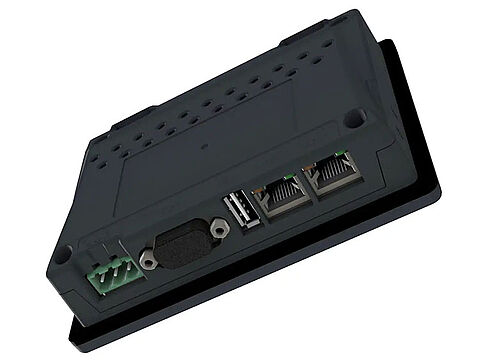

HTML5 WebPanel, 4.3", 800 x 480 LCD, cMT2058XH(W)
HTML5 WebPanel, 4.3", 800 x 480 LCD, quad-core CPU
- 4.3-inch 800 x 480 LCD
- Fanless cooling system
- Integrated 4 GB flash memory
- Wide input voltage range: 24±20% VDC
- IP66 front panel, NEMA 4 compliant
- Powerful and versatile Chromium browser
The cMT2058XH(W) is a compact 4.3-inch HTML5 WebPanel with an integrated Chromium browser for web-based visualization and operation of machines and systems. The WVA display, with a resolution of 800 × 480 pixels and a resistive touchscreen, enables clear and intuitive operation.
With a quad-core RISC processor, 4 GB of flash memory, and 1 GB of RAM, the WebPanel offers a powerful platform for web-based applications. Two Ethernet ports and a USB host port enable flexible integration into industrial networks. The fanless and compact plastic housing is particularly well-suited for applications with limited installation space.
Advertisement:
Size: 4.3" WVA LCD
Resolution: 800 x 480 pixels
Brightness: 530 cd/m²
Contrast: 800 : 1
Backlight lifespan: >30,000 hours
Colors: 16.7 million
LCD viewing angles (top/bottom/left/right): 80/80/80/80
Touchscreen:
Type: 4-wire resistive.
Accuracy: Active area—length (X) ±2%, width (Y) ±2%
Storage:
Flash: 4 GB
RAM: 1 GB
Processor:
Quad-core RISC
Interfaces:
SD Card Slot: No
USB Host: 1x USB 2.0
Ethernet:
LAN1: 1 x 10/100/1000 Base-T
LAN2: 1 x 10/100 Base-T
COM Port: No
CAN Bus: No
Audio Output: No
Power Supply:
Input voltage: 24±20% VDC
Electrical isolation (input from system voltage): integrated
Current consumption: 510 mA @ 24 VDC
Withstand voltage: 500 VAC (1 min.)
Insulation resistance: >50 MOhm at 500 VDC
Vibration resistance: 10 Hz to 25 Hz (X, Y, Z directions, 2 g, 30 minutes)
Printed Circuit Board Coating:
Yes, PCB
Housing:
Plastic housing

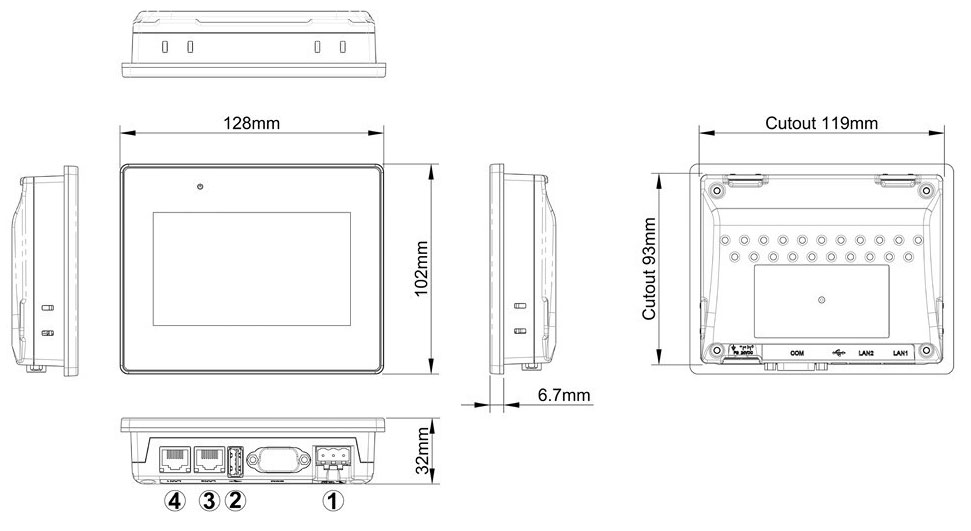

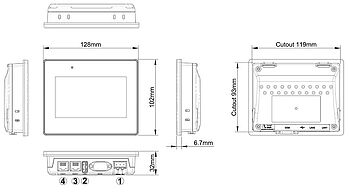

Dimensions (W x H x D):
128 mm x 102 mm x 32 mm
Panel cutout: 119 mm x 93 mm
Weight:
approx. 0.27 kg
Mounting:
Panel Mounting
Protection Class:
Front panel compliant with UL Type 4X (for indoor use only) / NEMA 4 / IP66
Ambient temperature:
Operating temperature: 0 °C to +50 °C.
Storage temperature: -20 °C to +60 °C.
Relative humidity: 10% to 90% (non-condensing)
Certificates:
CE-marked
, cULus
Software:
Chromium 132 (upgradable) does not support websites with Java applets or the Java SDK.
EasyAccess 2.0 license optional
Customs Tariff Number:
85371098
Manufacturer:
Weintek Labs, Inc.
