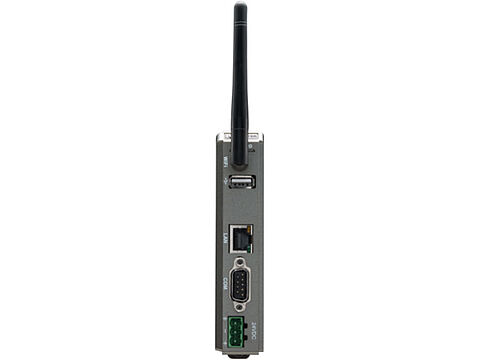

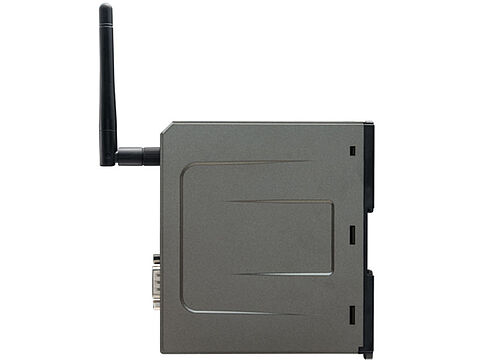

Frontless HMI cMT-SVR-200/202
The Frontless HMI contains 400 communication drivers for connecting PLCs, frequency inverters etc. and visualizes the data on PCs, mobile devices and on the cMTiV5 multi-touch display.
- Supports display on cMT Viewer clients.
- Compact design and DIN rail mounting
- Fanless cooling system
- Integrated 256 MB flash memory
- microSD card slot for memory expansion
- USB host port
- Supports MPI 187.5K
- WiFi compatible with 802.11 b/g/n
With Weintek's frontless HMI cMT-SVR-200/202, the architecture of a classic operating device is divided into a display unit and a communication unit. The display is shown via an app over Wi-Fi on an iPad or Android tablet (ARM or x86) or alternatively via a wired connection over Gigabit Ethernet on suitable displays or Windows-based panel PCs. The WLAN connection allows for a large range of motion and thus particularly flexible, mobile operation. Thanks to the separation of display and communication with the control system, performance is significantly increased, as the cMT-SVR-200/202 does not have to process image data itself; this task is performed by the respective display devices. With its serial interfaces and integrated MPI interface, the cMT-SVR-200/202 is an ideal solution for mobile and brilliant visualizations. The cMT-SVR-200/202 from Weintek thus fulfills all the characteristics of a classic operating device and also enables mobile operation via up to three iPads and several wired displays.
Memory:
Flash: 256 MB
RAM: 256 MB
Processor:
Quad-core RISC
Interfaces:
SD card slot: 1 x microSD
USB Host: 1 x USB 2.0
USB Client: No
Ethernet: 1 x 10/100 Base-T
COM Port: COM1: RS232 2-wire, COM2: RS485 2-/4-wire, COM3 RS485 2-wire
WiFi: IEEE 802.11 b/g/n, 802.11b: max. 19.52 dBm, 802.11g: max. 15.35 dBm, 802.11n: max. 15.28 dBm
Real-time clock:
Integrated real-time clock RTC
Power supply:
Input voltage: 24±20% VDC
Galvanic isolation (input voltage from system voltage): integrated
Current consumption: 450 mA at 24 VDC
Dielectric strength: 500 VAC (1 min.)
Insulation strength: >50 MOhm at 500 VDC
Specifications:
PCB Coating: Yes
Housing: Plastic

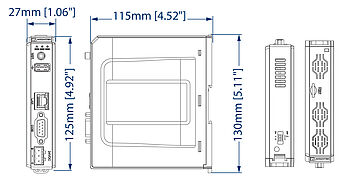

Dimensions (WxHxD): 27mm x 130mm x 115 mm
Weight: approx. 0.18 kg
Ambient temperature:
Operating temperature: -20 °C to +55 °C.
Storage temperature: -20 °C to +70 °C.
Relative humidity: 10 % to 90 % (non-condensing)
Vibration resistance: 10 to 25 Hz, 2 g in X, Y and Z direction, 30 minutes each
Fastening:
35 mm top-hat rail mounting
Protection class:
IP20
Certificates:
CE
UL-listed
Software:
EasyBuilder Pro from V6.02.02
Weincloud:
cMT-SVR-200: EasyAccess 2.0 (optional)
cMT-SVR-202: EasyAccess 2.0 (integrated)
Customs tariff number:
90328900
Manufacturer:
Weintek Labs, Inc
Download the PLC Connection Manual Ver. 5.06.01 here, with all the information on the devices, data types and cabling for each communication driver in EasyBuilder Pro.
Download (27.99 MB)
Remote monitoring and remote access
to your HMI of the cMT series
Download (2.07 MB)
to the Technical Videos of the Operating and Monitoring product group
Touch Panel für HMI Server, 9,7",
cMT-iV6
Dieses Produkt ist abgekündigt.
Bei Fragen setzen Sie sich bitte mit unserer technischen Anwendungsberatung in Verbindung. Gerne beraten wir Sie über Alternativen.
Touch Panel für HMI Server, 9,7", 1024x768, 1 Gigabit Ethernet
