Interfaces:

2x Ethernet port (RJ45 socket)
No physical network separation!
Note: The switch function between the Ethernet ports can be used to topologically connect separate networks.

BACnet objects:

Read and write up to 2,000 BACnet objects

LED:

6x signal display for supply and communication

Supply:

12 VDC to 35 VDC or
8 VAC to 24 VAC

Power consumption:

HD67674-IP-A1: 3.5 Watt / VA

Supported function codes:

FC01, FC02, FC03, FC04, FC05, FC06, FC15, FC16

You can find more detailed information on this in
Technical Note 0302: Modbus basics

Software:

Free configuration software SW67674 for
parameterization of the device

BBMD functionality:

This gateway only supports BBMD in a rudimentary way. No "Registration by Foreign Devices" and no NAT.

Operating temperature:

-40 °C to +85 °C

Humidity:

10 % to 80 %, non-condensing

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN rail

Note:

The article description should always be viewed from the gateway's perspective.

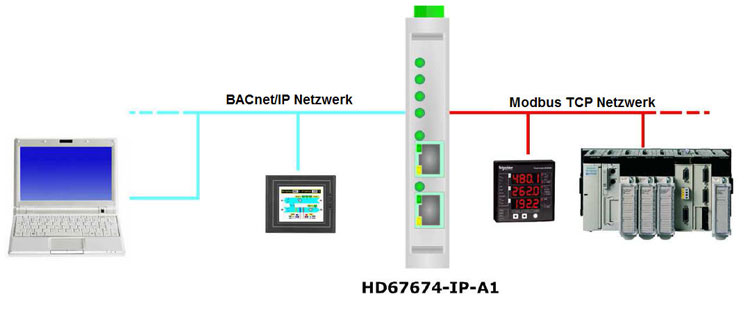

You can connect masters to the HD67674 on the BACnet side and masters on the Modbus TCP side.

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
