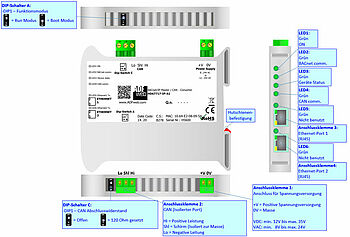

Interfaces:

1x CAN (removable screw terminal, 3-pin)
2x Ethernet port (RJ45 socket)

BACnet objects:

Read and write up to 512 BACnet objects

CAN data rate:

Read and write up to 500 CAN frames

LED:

4x signal display for supply and communication

Supply:

12 VDC to 35 VDC or
8 VAC to 24 VAC

Power consumption:

HD67717-IP-A1: 3.5 Watt / VA

Software:

Free configuration software SW67717 for
parameterization of the device

BBMD functionality:

This gateway only supports BBMD in a rudimentary way. No "Registration by Foreign Devices" and no NAT.

Operating temperature:

-40 °C to +85 °C

Humidity:

10 % to 80 %, non-condensing

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN rail

Note:

The article description should always be viewed from the perspective of the gateway.

You can connect slaves to the HD67717 on the BACnet side.

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
