All-in-One 10.1" TFT Touch WBGcMT3103

All-in-one HMI, 10.1" TFT, 32-bit Cortes A9 1 GHz, WiFI, CAN, EasyAccess 2.0, OPC UA/MQTT

This product is discontinued
If you have any questions, please contact ourtechnical application support teamatCustomer Service. We will be happy to advise you on alternatives.

Datasheet Technical support Request/On-site presentation

10.1" TFT LCD graphic display 1024 x 600 with LED backlighting
Fanless cooling system
COM2 / COM3 RS485 2-wire supports MPI 187.5 K
PCB coating process ensures high reliability and corrosion resistance in harsh environments.
Galvanic isolation of supply and system voltage
CAN bus supports CANopen, CAN bus 2.0A/2.0B and SAE J1939
IP65 on the front, NEMA4 compliant
WiFi 802.11 b/g/n
Integrated 4 GB flash memory and RTC
EasyAccess 2.0 license included

Product description

The all-in-one HMI WBGcMT3103 from Weintek with its 32-bit RISC Cortex-A9 processor with 1 GHz clock frequency enables high performance in the visualization of data. The WBGcMT3103 not only works like an ordinary HMI, but is also a cMT server. This makes it possible to use the cMT Viewer app on a panel PC (WBGcMTiPC10/15) or a display (WBGcMTiV5) to additionally monitor and control the visualization of the WBGcMT3103.
The IIoT standard protocols OPC UA and MQTT enable you to communicate between your machines/systems and the higher-level control/management systems. This ensures simultaneous monitoring and control of your transmission data. The integrated license for the EasyAccess2.0 remote access service enables you to visualize the HMI on end devices (such as PC, smartphone and tablet) at an external location. With EasyAccess2.0, you can access devices in the network via the WBGcMT3702 using the "Path Throug" method (1 device at a time)

Technical data

Display:

Size: 10.1" TFT
Resolution: 1024 x 600 pixels
Brightness: 350 cd/m²
Contrast: 500 : 1
Backlight: LED
Backlight life: >50,000 hours
Colors: 16.7 million
LCD viewing angle (up/down/left/right): 60/60/70/70

Touch display:

Type: 4-wire analog resistive.
Accuracy: Active range length (X) ±2 %, width (Y) ±2 %

Memory:

Flash: 4 GB
RAM: 1 GB

Processor:

32 bit RISC Cortex-A9 1 GHz

Interfaces:

SD card slot: No
USB host: 1x USB 2.0
Ethernet:
LAN: 10/100/ Base-T
WiFi: IEEE 802.11 b/g/n
802.11b: max. 19.25 dBm
802.11g: max. 13.74 dBm
802.11n: max. 15.01 dBm
COM port:
Connection A: COM2 RS485 2-/4-wire, COM3 RS485, CAN bus
Connection B: COM1/COM3 RS232 (only use Tx & RX (not RTS/CTS) for COM1 RS232 if COM3 RS232 is used at the same time)
RS485 isolation: No
CAN bus: Yes
HDMI: No
Audio Output: No
Video Input: No

Real-time clock:

Integrated real-time clock RTC

Power supply:

Input voltage: 10.5 VDC to 28 VDC
Galvanic isolation (input voltage from system voltage): integrated
Current consumption: 2A at 12 VDC, 1 A at 24 VDC
Dielectric strength: 500 VAC (1 min.)
Insulation resistance: >50 MOhm at 500 VDC
Shock resistance: 10 Hz to 25 Hz (X,Y,Z direction 2 G 30 minutes)

Printed circuit board coating:

Yes, PCB

Housing:

Plastic housing

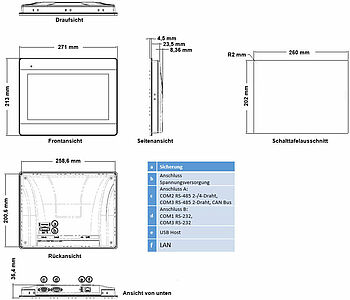

Dimensions (WxHxD):

271 mm x 213 mm x 36.4 mm
Panel cut-out: 260 mm x 202 mm

Weight:

approx. 1.07 kg

Fastening:

Panel mounting

Protection class:

NEMA4 / front IP65
