ViTAM-919DR

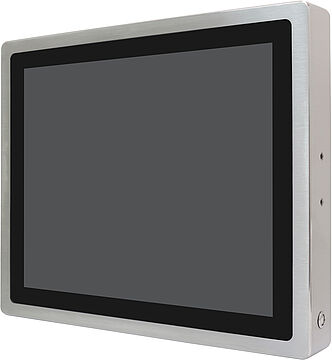

19 inch Panel PC ViTAM-919DR
Stainless steel housing

19" TFT LCD, 1280 x 1024 pixels
Resistive touch
Intel Core i3-1215U, 6C/8T, 10MB cache, 1.2 GHz( 4.4 GHz)
Intel Core i5-1235U, 10C/12T, 10 MB cache, 1.3 GHz (4.4 GHz)
IP66/IP69K stainless steel housing with M12 connections

Datasheet Technical support Request/On-site presentation

19" TFT LCD, 1280 x 1024 pixels
Resistive touch
Processor: ^Intel® Core™ i3-1215U (1.2 GHz) / i5-1235U (1.3 GHz)
IP66/IP69K stainless steel housing with M12 connections
Flush frame design
Fanless cooling system
Reading angle horizontal 170°, vertical 160°

Industrie-Panel-PC (IPC) 19 Zoll Edelstahl Rückseite M12-Konnektoren ViTAM-919R

Product description

The ViTAM-9D series is based on an ^Intel® Core™-i processor of the 12th or 13th generation.

This very powerful and efficient processor family provides sufficient computing power for medium and large applications. The RAM can be expanded to up to 64 GB, enabling more extensive projects such as SCADA or IIoT monitor control applications. The industrial panel PCs in this series are available in display sizes ranging from 15" to 21.5" and are available with either a projected capacitive or resistive touchscreen. The projected capacitive touch enables multi-touch operation with a corresponding operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. The front panels are absolutely flush with the stainless steel housing (type 304). The housing is designed in IP69K (incl. IP66) with M12 connection options. An on/off button is also integrated on the side of the Panel PC. The unique fanless thermal design of the robust stainless steel housing enables effective temperature control. The ViTAM IPC can be optionally equipped with a high-brightness LCD and/or optical bonding for an outstanding display, even under the most difficult conditions. In addition, expansion cards for further interfaces or RFID can be integrated.

Technical data

Power supply:

9 VDC to 36 VDC

Power consumption:

73,98 W

Display:

19" TFT LCD

Resolution:

1280 x 1024 pixels

Aspect ratio:

5:4

Brightness:

350 cd/m²
1000 cd/m² (optional high-brightness LCD)

Backlight:

50,000 h running time

Colors:

16.7 million

Contrast:

1000:1

Reading angle:

H: 170° / V: 160°
H: 170° / V: 160° (optional high-brightness LCD)

Touch screen:

resistive touch

Processor:

^Intel®^Core™ i3-1215U (1.2 GHz)
^Intel®^Core™ i5-1235U (1.3 GHz)

RAM:

2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz

SSD/HDD:

1 x M.2 M-Key 2280 (PCIex4)

Interfaces:

USB: 1 x M12 8-pin for USB 2.0 with waterproof termination
Serial: 1 x M12 8-pin for COM 1 (RS-232/-422/485, standard RS-232) with waterproof termination
Ethernet: 1 x M12 A-code, 8-pin, socket (female) for Gigabit Ethernet with waterproof termination
Other: 1 x touch on/off button (on the side)
Power supply: 1 x M12 3-pin for DC with waterproof termination, 1 x On/Off button (rear)

Expansion slots:

1 x M.2 3402/3052 B-Key (PCIe x1, USB 3.2 Gen1) for optional LTE/5G module
1 x M.2 2230 E-Key (USB 2.0, PCIe x1) for optional Wi-Fi/Bluetooth module
1 x nano SIM card slot
1 x RFID (front side, on request)

Housing:

Stainless steel (type 304, optionally 316)

Assembly:

VESA 100 x 100; yoke mount (swivel fork mount)

Protection class:

IP66/IP69K

Weight:

approx. 9.5 kg

Dimensions (WxHxD):

470 mm x 388.6 mm x 60 mm

Ambient conditions:

Operation: 0 °C to +50 °C
Storage: -30 °C to +70 °C
10 to 95 %@ 40°C r.h., non-condensing.

Certifications:

CE/FCC Class A

Operating systems:

Windows 10
Windows 11

Options:

2 x optional M12 connectors with waterproof cover, which can be used to select two of the following interfaces:
2 x USB 2.0
1 x USB 3.0
1 x LAN (Ethernet)
1 x COM (serial port)
Operation: -20 °C to +60 °C

Scope of delivery:

Device
1 x M12 power supply unit
1 x M12 USB2.0 Y-cable

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
