Interfaces:

HD67866-A1-2A:
1x Ethernet port (RJ45 socket)
1x CAN (removable screw terminal, 3-pin)
2x IO-Link port A (removable screw terminal, 4-pin)

HD67866-A1-4A:
1x Ethernet port (RJ45 socket)
1x CAN (removable screw terminal, 3-pin)
4x IO-Link port A (detachable screw terminal, 4-pin)

HD67866-A1-2B:
1x Ethernet port (RJ45 socket)
1x CAN (removable screw terminal, 3-pin)
2x IO-Link port B (removable screw terminal, 5-pin)

HD67866-A1-2A-2B:
1x Ethernet port (RJ45 socket)
1x CAN (removable screw terminal, 3-pin)
2x IO-Link port A (removable screw terminal, 4-pin)
2x IO-Link port B (removable screw terminal, 5-pin)

IO-Link Port A:

The IO-Link port A (I/O-Link class A) is a detachable 4-pole screw terminal to which sensors and actuators with low input power can be connected.
The maximum input power is 200mA.

IO-Link Port B:

The IO-Link port B (I/O-Link class B) is a detachable 5-pin screw terminal to which actuators can be connected. This IO-Link port B requires a separate Aux supply.

CAN data rate:

Up to 1 Mbps

Data rate IO-Link:

4,800 bps - 38,400 bps - 230,400 bps

LED:

5x signal display for supply and communication

Power supply:

18 VDC to 30 VDC

Aux supply:

The Aux supply is the additional power supply for the IO-Link ports B (IO-Link class B) and is 24VDC.
The required current depends on the input power required by the connected IO-Link devices that are connected to the IO-Link ports B.

Power consumption:

HD67866-A1-XX: 4 Watt/ VA
(Without the power of the connected IO-Link devices)

Software:

Free configuration software SW67866 for
parameterization of the device.

Operating temperature:

-40 °C to +85 °C

Humidity:

10 % to 80 %, non-condensing

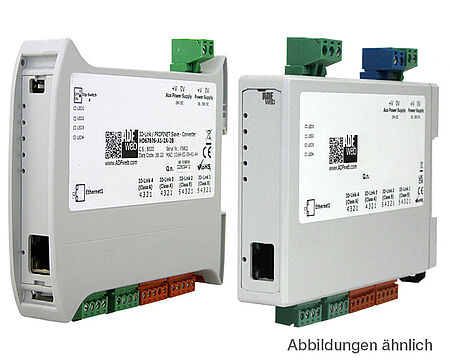

Housing:

Previous housing: PVC
New housing: PC-ABS

Dimensions (WxHxD):

Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm

Weight:

approx. 200 g

Fastening:

Mounting on the DIN rail

Customs tariff number:

8517 62 00

Manufacturer:

ADFweb.com S.r.l.
