Gateway EtherCAT Server (Slave) / CANopen
HD67E08-A1
Interfaces:
1x Ethernet, 1x EtherCAT IN, 1x EtherCAT OUT, 1x CANopen
- Bidirectional data exchange between EtherCAT and CANopen
- Simple integration through generation of an ESI file
- High temperature range from -40 °C to +85 °C
- Galvanic isolation between EtherCAT / CANopen / power supply
- Transmission of project planning via Ethernet

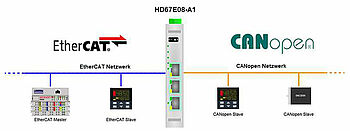

The HD67E08-A1 is an EtherCAT server (slave) / CANopen gateway. It enables an EtherCAT client (master) (such as a Beckhoff PLC, OMRON PLC, etc.) to be connected to a CANopen network in order to exchange information between the networks. On the EtherCAT side, there are two Ethernet ports for EtherCAT IN and OUT connections: They enable line and ring topology (for simple redundant communication). Easy and fast integration of the EtherCAT server gateways into the master configuration thanks to the ESI file created with the SW67E08 software.
Further information on this gateway is available on request. Please get in touch with the contact persons listed below.
Interfaces:
1x Ethernet port (RJ45 socket)
1x EtherCAT IN (RJ45 socket)
1x EtherCAT OUT (RJ45 socket)
1x CANopen (removable screw terminal, 3-pin)
LED:
6x signal display for supply and communication
Supply:
12 VDC to 35 VDC or
8 VAC to 24 VAC
Power consumption:
HD67E08-A1: 3.5 Watt/ VA
Software:
Free configuration software SW67E08 for
parameterization of the device
Operating temperature:
-40 °C to +85 °C
Humidity:
10 % to 80 %, non-condensing
Housing:
Previous housing: PVC
New housing: PC-ABS
Dimensions (WxHxD):
Previous housing: 23 mm x 107 mm x 120 mm
New housing: 22.5 mm x 90.7 mm x 123 mm
Weight:
approx. 200 g
Fastening:
Mounting on the DIN rail
Customs tariff number:
8517 62 00
Manufacturer:
ADFweb.com S.r.l.
