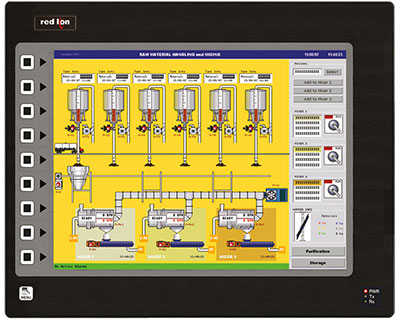

Control unit G315

Universal and powerful operating device with large touch display.

Delisting
If you have any questions, please contact our technical application consultants. We will be happy to advise you on alternatives.

Datasheet Technical support Request/On-site presentation

15 inch TFT touch display 1024 x 768 pixels
Up to 6 serial interfaces (RS232, RS485) with high-speed protocol converter
USB port for programming and data exchange and USB host
Ethernet port (10 Base T/100 Base-TX), optimally a second Ethernet interface
Internal 64 MB flash memory
Built-in web server and FTP server/client
Compact Flash port for cards up to 2 GB with data logging function, e.g. for remote diagnostics
Freely configurable keyboard with 10 keys
Extensive driver list for a wide range of control systems
Free comprehensive project planning software

Product description

The G315 operating device has high-end functions that are normally only found in PC-based HMIs.
The large 15" TFT display makes it very easy to read information and make changes via the touch screen or the 10 freely programmable operating buttons. The G315 can work as a multi-protocol converter in conjunction with 4 high-speed RS232/485 ports and 1 Ethernet 10/100 Base-TX port. The Ethernet interface processes 4 protocols simultaneously, allowing different Ethernet-based devices to communicate with each other. Furthermore, you can connect the operating device directly to your network via the Ethernet interface, giving you the option of remote maintenance and reading out measurement data via a web server. The measured values and the project planning can be saved on a Compact Flash card (up to 2 GB) with date and time. This means that the operating device also works as a data logger and enables fast machine analysis. In addition, all common bus systems, such as Profibus, CANopen, DeviceNet, Modbus, BACnet, are supported.

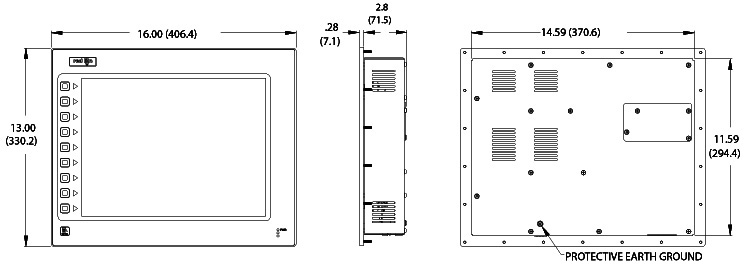

Technical data

Power supply

+24 VDC +/-20 %; 46 watts max,
Connection via detachable 3-pole terminal strip.

Display

15 inch TFT touch display with 32000 colors (XGA). 1024 x 768 pixels for displaying characters or graphics.
Brightness of the backlight 600 cd/m²

Battery

Internal lithium battery, service life approx. 10 years.

Keyboard

The membrane keypad consists of 10 freely programmable function keys that can be used to access screen content.

Indicators

3 function LEDs that indicate the power supply and communication.
communication.

Memory

Internal non-volatile 64 MB flash memory.
Compact Flash slot for the installation of
Type I or Type II Compact Flash cards up to 2 GB.

Interfaces

USB interface:
Interface according to USB specification 2.0.

USB host interface:
Interfaces acc. to USB specification 2.0.
Supports data transfer at full speed.

Serial interfaces:
All interfaces up to 115,200 baud
Programming interface: RS232 (RJ12)
Communication interface: RS232 (RJ12),RS 422/485 (RJ45),DH485 (RJ45)

The interfaces are electrically isolated from each other and operate via their own hardware. This means that all 4 serial interfaces can be operated in parallel with different protocols.

Ethernet

10 Base-T / 100-Base TX via Rj45 connector. A second Ethernet interface with its own MAC address is available as an option.

Additional interfaces (option)

The following interfaces can also be plugged in:
Profibus-DP, CANopen, DeviceNet, RS485, Ethernet, GSm/GPRS modem

Drivers

Drivers are available for the following controllers:

- Allen Bradley (DF1 Master, DH485 Master)
- Alstom (ALSPA Master, GEM80 ESP)
- Animatics (Smart Motor)
- Danfoss (VLT 6000)
- Dupline (master generator via Modbus)
- Festo (FPC, IPC, FEC series)
- Garmin (NMEA-0183)- GE (SNP Master)
- IDEC (Micro 3 series / ONC)
- IMO (G series, K series, PLC-CNET)
- IRCON (Modline)
- Kloeckner Moeller (PS4-201)
- Krohne (Flowmeter IFC020D)
- Lenze (LECOM-A/B Master)
- Matsushita (FP series)
- Mitsubishi (FX series, A/Q series)
- Modbus (ASCII Slave, RTU Slave, Universal Master)
- Omron (C Series PLC)
- Pacific Scientific (830 Master)
- Parker (Compumotor 6K Master)
- PLC Direct Koyo (DirectNet, K Sequence)
- Quicksilver (Silvermax)
- SEW (MOVILINK Master)
- Siemens (S7 via MPI Adapter, S7 via PPI, Simovert vis USS)
- Telemechanique (Uni-Telway)
- Yaskawa (Legend/SMC 3010)

The driver list is constantly being updated. Please contact us if the driver for your control system is not listed.
