ViTAM-8B-series Intel Celeron J6412

ViTAM-815BP

15 inch Panel PC ViTAM-815BP
Stainless steel housing

15" TFT-LCD, 1024 x 768 pixels
Projected capacitive touch
Processor: Intel Celeron J6412 (2.0 GHz)
IP66/IP69K stainless steel housing with M12 connections

Datasheet Technical support

15" TFT-LCD, 1024 x 768 pixels
Projected capacitive touch
Processor: Intel Celeron J6412 (2.0 GHz)
IP66/IP69K stainless steel housing with M12 connections
Flush frame design
Fanless cooling system
Reading angle horizontal 176°, vertical 176°

Product description

The ViTAM-8B series is based on an Intel Celeron J6412 (2.0 GHz) processor.

The industrial panel PCs in this series are available in display sizes from 10.1" to 24", with either projected capacitive or resistive touch. The projected capacitive touch enables multi-touch operation with a corresponding operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. The front panels are absolutely flush with the stainless steel housing (type 304). The housing is designed in IP69K (incl. IP66) with M12 connection options. An on/off button is also integrated on the side of the panel PC. The unique fanless thermal design of the robust stainless steel housing enables effective temperature control. The ViTAM IPC can optionally be equipped with a high-brightness LCD and/or optical bonding for an outstanding display, even under the most difficult conditions.

Technical data

Power supply:

9 VDC to 36 VDC

Power consumption:

max. 37.52 W

Display:

15" TFT LCD

Resolution:

1024 x 768 pixels

Aspect ratio:

4:3

Brightness:

300 cd/m²
1000 cd/m² (optional High Brightness)

Colors:

16,2 M
16.7 M (optional High Brightness)

Contrast:

2000:1
1000:1 (optional High Brightness)

Reading angle:

H: 176° / V: 176°

Touch screen:

projects capacitively

Processor:

Intel Celeron J6412 (2.0 GHz)

System Chipset:

SoC

RAM:

1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz

SSD/HDD:

1 x 2.5" SATA3 HDD

Storage space:

1 x M.2 B-Key (SATA 3), standard support for 2242

Interfaces:

USB: 1 x M12 8-pin for USB 2.0 with waterproof termination
Serial: 1 x M12 8-pin for COM 1 (RS-232/-422/485, default RS-232) with waterproof termination
Ethernet: 1 x M12 A-code, 8-pin, socket (female) for Gigabit Ethernet with waterproof termination
Other: 1 x On/Off button (on the side, waterproof)
Power supply: 1 x M12, 3-pin for DC with waterproof closure, 1 x on/off switch on the back

Expansion slots:

1 x Mini PCIe slot for 4G/5G module
1 x M.2 E-Key 2230 for WiFi/BT module
1 x nano SIM card slot

Housing:

Stainless steel (type 304, optionally 316)

Assembly:

VESA mounting 75 x 75 mm, yoke mount (optional)

Protection class:

IP66/IP69K

Weight:

6.85 kg

Dimensions (WxHxD):

399 mm x 324 mm x 53 mm

Ambient conditions:

Operation: 0 °C to +50 °C, optionally -20 °C to 60 °C
Storage: -30 °C to +70 °C
10 to 95 % r.h. at 40 °C, non-condensing

Certifications:

CE/FCC class A

Operating systems:

^Windows® 10 IoT
^Windows® 11 IoT

Options:

2 x optional, unpopulated M12 connectors with watertight seal to select two of the following options:
2 x USB 2.0
1 x USB 3.0
1 x LAN
1 x COM
RFID module design on the front
optional -20 °C to 60 °C

Scope of delivery:

Device
1 x M12 plug-in power supply
1 x M12 USB cable (1x M12 to 2x USB 2.0)

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.

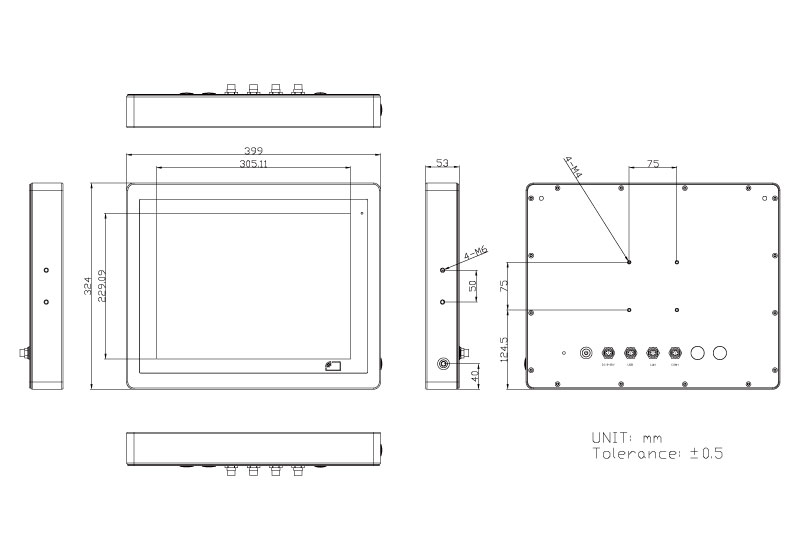

Drawings
