Power supply:

9 VDC to 36 VDC

Power consumption:

max. 32.48 W

Display:

15.6" TFT LCD

Resolution:

1366 x 768 pixels

Aspect ratio:

16:9

Brightness:

400 cd/m²
500 cd/m² (optional)
1000 cd/m² (optional high brightness)

Colors:

16,7 M

Contrast:

500:1
1000:1 (optional)

Reading angle:

H: 170° / V: 160°
H: 178° / V: 178° (optional)
H: 160° / V: 160°, H: 170° / V: 170° (optional high brightness)

Touch screen:

Without touch function

Processor:

Intel Celeron J6412 (2.0 GHz)

System Chipset:

SoC

RAM:

1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz

SSD/HDD:

1 x 2.5" SATA3 HDD

Storage space:

1 x M.2 B-Key (SATA 3), standard support for 2242

Interfaces:

USB: 1 x M12 8-pin for USB 2.0 with waterproof termination
Serial: 1 x M12 8-pin for COM 1 (RS-232/-422/485, default RS-232) with waterproof termination
Ethernet: 1 x M12 A-code, 8-pin, socket (female) for Gigabit Ethernet with waterproof termination
Other: 1 x On/Off button (on the side, waterproof)
Power supply: 1 x M12, 3-pin for DC with waterproof closure, 1 x on/off switch on the back

Expansion slots:

1 x Mini PCIe slot for 4G/5G module
1 x M.2 E-Key 2230 for WiFi/BT module
1 x Nano SIM card slot

Housing:

Stainless steel (type 304, optionally 316)

Assembly:

VESA mounting 75 x 75 mm, yoke mount (optional)

Protection class:

IP66/IP69K

Weight:

6.83 kg

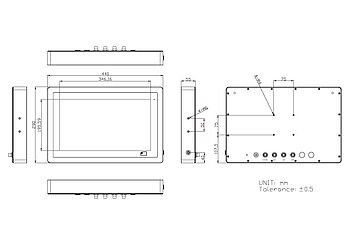

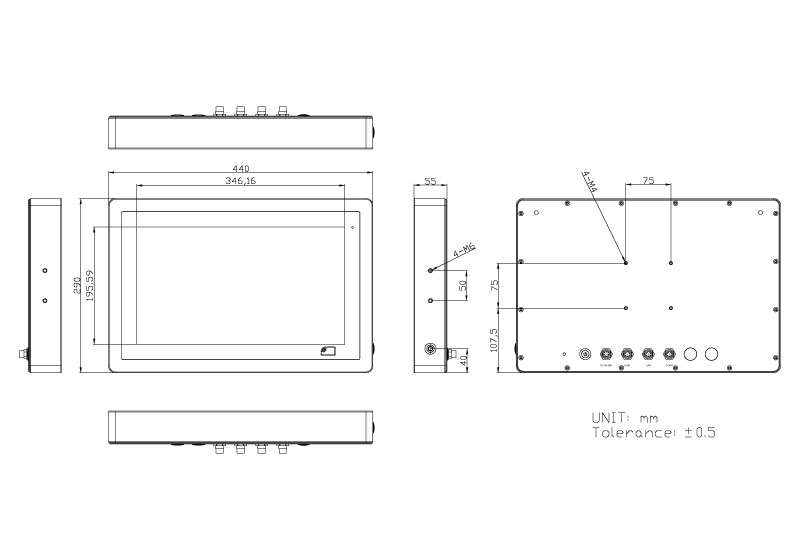

Dimensions (WxHxD):

440 mm x 290 mm x 55 mm

Ambient conditions:

Operation: 0 °C to +50 °C, optionally -20 °C to 60 °C
Storage: -30 °C to +70 °C
10 to 95 % r.h. at 40 °C, non-condensing

Certifications:

CE/FCC class A

Operating systems:

^Windows® 10 IoT
^Windows® 11 IoT

Options:

2 x optional, unpopulated M12 connectors with watertight seal to select two of the following options:
2 x USB 2.0
1 x USB 3.0
1 x LAN
1 x COM
RFID module design on the front
optional -20 °C to 60 °C

Scope of delivery:

Device
1 x M12 plug-in power supply
1 x M12 USB cable (1x M12 to 2x USB 2.0)

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
