FnIO module - power module,
1-channel field distributor, ST7241
is used to supply the Bus Terminals
with the respective supply potential
Delisting
If you have any questions, please contact our technical application consultants.

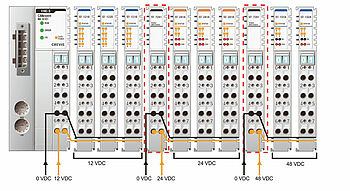

With the 1-channel field distributor, both direct voltage (5 VDC, 12 VDC, 24 VDC or 48 VDC) and alternating voltage (115 VAC or 230 VAC) can be supplied to the Bus Terminals. This makes it possible to implement areas with different supply potentials in one system.
Field voltage:
5 VDC, 12 VDC, 24 VDC, 48 VDC, or 115 VAC, 230 VAC
Current via contacts:
max. 10 A
Indicators:
none
Wiring:
I/O cable max. 2.0 mm²
Weight:
70 g
Operating temperature:
-20 °C to 60 °C
Storage temperature:
-45 °C to 85 °C
Dimensions (WxHxL):
12 mm x 99 mm x 70 mm
