Power supply:

9 VDC to 36 VDC

Power consumption:

TBD

Display:

15" TFT LCD

Resolution:

1024 x 768 pixels
1024 x 768 pixels (optional high brightness)

Aspect ratio:

4:3

Brightness:

350 cd/m²
1000 cd/m² (optional high brightness)

Backlight:

50,000 h
50,000 h (optional High Brightness)

Colors:

16.7 M
16.2 M (optional High Brightness)

Reading angle:

H: 178° / V: 178°
H: 176° / V: 176° (optional High Brightness)

Touch screen:

Projected capacitive touch

Processor:

Intel Core Ultra 5 125U (2 P-cores × 1.3 GHz, 8 E-cores × 0.8 GHz, 12 MB cache, 15 W)
Intel Core Ultra 7 155U (2 P-cores × 1.7 GHz, 8 E-cores × 1.2 GHz, 12 MB cache, 15 W)

RAM:

1 × DDR5-5600 MHz SO-DIMM, up to 32 GB

SSD/HDD:

1 × M.2 2280 M-Key slot (PCIe 3.0 ×4)

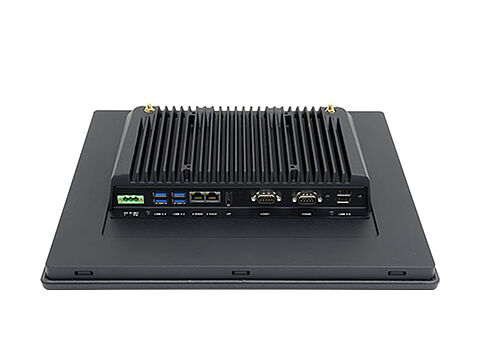

Interfaces:

USB: 4 x USB 3.2 Gen1 Type-A
Serial: 1 × DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 standard), 1 × DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 standard), optional, 1 × DB9, supports RS-232 (COM3), optional
Ethernet: 2 × RJ-45, supports Intel I226V/IT 2.5 GbE LAN
Power supply: 1 × terminal block, supports DC 9 to 36 V
Display output: 1 × HDMI 2.1 resolution up to 7680 × 4320 @ 60 Hz, 1 × DP 1.4 resolution up to 7680 × 4320 @ 60 Hz

Expansion slots

1 × M.2 2230 E-Key (USB 2.0, PCIe ×1) for optional Wi-Fi/BT module
1 × M.2 3042/3052 B-Key (PCIe ×1, USB 3.2 Gen1, USB 2.0) for optional LTE/5G module
1 × Nano-SIM slot

Housing:

Die-cast aluminum housing

Assembly:

Panel mounting, VESA 100 x 100

Protection class:

IP66-compliant front panel

Dimensions (WxHxD):

359.6 mm x 283.6 mm x 65.5 mm

Weight:

TBD

Ambient conditions:

Operation: -20 °C to +60 °C
Storage: -30 °C to +70 °C
10% to 95 %.r.h., non-condensing

Certifications:

CE/FCC Class A

Operating systems:

Windows 10 IoT Enterprise 2021 LTSC or higher
Windows 11 (21H2) or higher

Scope of delivery:

Device
1 x power supply unit
1 x mounting material

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
