Power supply:

9 VDC to 36 VDC

Processor:

^{Intel®Celeron®} J6412, 4-C, 2.0 GHz, 10 W
^{Intel®Atom®} x6413E, 4-C, 1.5 GHz, 9 W

RAM:

1 x 260-pin SO-DIMM up to 32GB DDR4

SSD/HDD:

1 × M.2 M-Key 2242/2280 for SSD (SATA3), 1 × MO-297 SATA (optional)

Interfaces:

USB: 2x USB 3.2 Gen1 type A
Serial: 1 × RS-232/422/485, DB-9 (standard: RS-232)
Ethernet: 1 × Gigabit Ethernet LAN RJ-45 (i210AT), 1 × 2.5 GbE LAN RJ-45 (i225LM)
Power supply: 1 × 3-pin DC power input terminal block, 1 × power LED
Audio: 1 × audio output
Video: 1 × HDMI 2.0b, up to 3840 × 2160 @ 60 Hz, 1 × DisplayPort 1.4 incl. DP++, up to 4096 × 2160 @ 60 Hz

Expansion slots:

1 × Mini PCIe full-size card with 1 × SIM slot
1 × M.2 E-Key 2230 for WLAN/Bluetooth module

Housing:

Aluminum heat sink in titanium grey with black steel chassis

Assembly:

Wall mounting / top-hat rail mounting (optional)

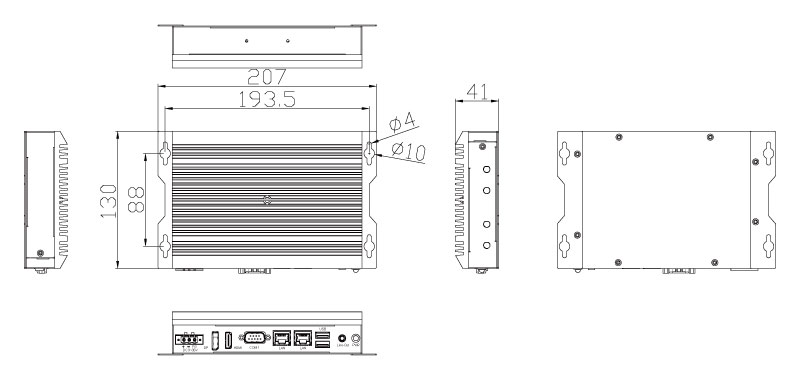

Dimensions:

207 × 130 × 41 mm (for wall mounting)
180 × 130 × 40 mm (for top-hat rail mounting)

Weight:

1.5 kg

Ambient conditions:

Operation: -20 °C to +60 °C, or -30 °C to +70 °C (optional)
Storage: -40 °C to +85 °C
10 % to 90@ 40 °C , non-condensing

Certifications:

CE / FCC Class A, RoHSs

Operating systems:

^Windows® 10 IoT
^Windows® 11 IoT

Options:

4 × SMA socket openings for external antennas

Scope of delivery:

Device

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
