Power supply:

9 VDC to 36 VDC

Processor:

Intel® Core™ i5/i3 processor of the 11th generation
i5-1145G7E: 4 C, 1.5 GHz, up to 4.1 GHz , TDP 28 W
i3-1115G4E: 2 C, 2.2 GHz , up to 3.9 GHz , TDP 28 W

RAM:

2 x 260-pin SO-DIMM up to 64 GB DDR4 3200MHz

SSD/HDD:

1 × M.2 M-Key 2280 (supports PCIe/SATA3)

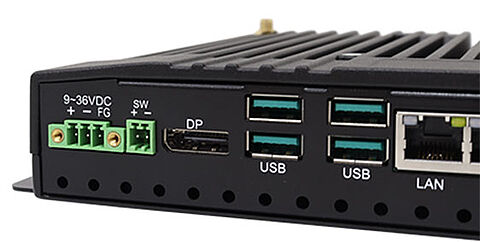

Interfaces:

USB: 4 x USB 3.0 type A
Serial: 1 × DB-9 connector, including:
1 × RS-232 (RTS, Rx, Tx, CTS), pin 1 selectable as RTS / 5 V / 12 V via jumper (COM1)
1 × RS-232 (Tx, Rx) / RS-422 / RS-485, available via Y-cable (COM2)
Ethernet: 1 x 1GbE, 1 x 2.5GbE LAN RJ-45
Power supply: 1 x 3-pin terminal block connector, 1 x 2-pin on/off switch connector
Audio: 1 × audio output
Video: 1 × DP/HDMI

Expansion slots:

1 x Mini PCIe slot (full size)
1 x M.2 E-Key for Wi-Fi/Bluetooth module
1 x Nano-SIM slot

Housing:

Aluminum housing

Assembly:

Panel mounting, VESA 100 x 100

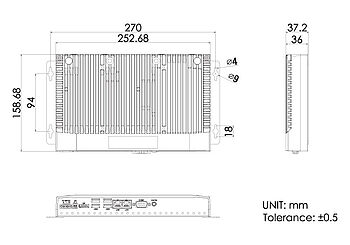

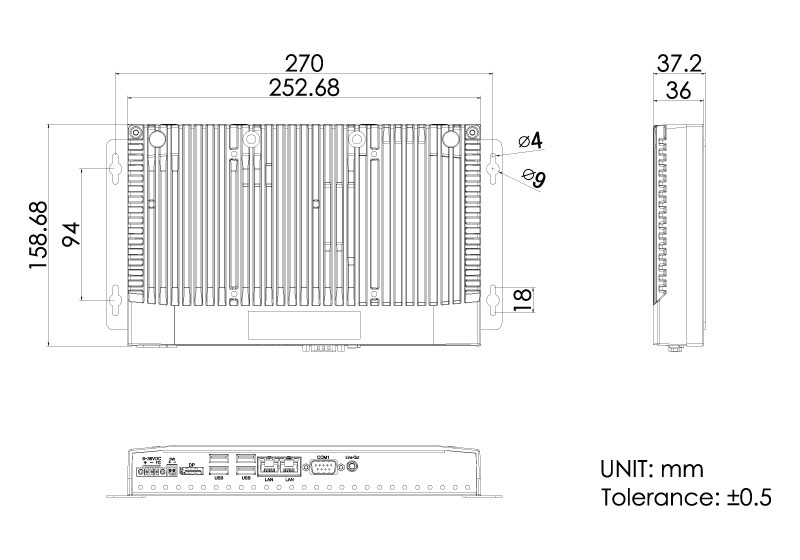

Dimensions:

252.7 x 158.7 x 36 mm (without wall bracket)

Ambient conditions:

Operation: -20 °C to +60 °C
Storage: -30 °C to +70 °C
10 % to 90 %.r.h., non-condensing

Certifications:

CE / FCC Class A

Operating systems:

^Windows® 10 IoT
^Windows® 11

Scope of delivery:

Device
Plug-in power supply unit

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
