Power supply:

9 VDC to 36 VDC

Processor:

Intel® Core™ i3/i5/i7/i9 processors of the 12th, 13th and 14th generation (up to 65 W)

BIOS:

AMI

Memory:

Standard: 1 x M.2 M-Key, 2280 (SATA3, PCIe x4 Gen.3) for SSD
Option: 2 x 2.5″ SATA3 HDD/SSD (easily replaceable HDD compartment), BIOS supports RAID 0/1
Note: Modules with extended temperature range required

Other:

Watchdog timer: 256 steps
Antenna: 6 x SMA for Wi-Fi, 4G LTE / 5G / GPS

Security:

SPI TPM 2.0 onboard

RAM:

2 x 262-pin DDR5 (4800 MHz) SO-DIMM, up to 64 GB (32 GB per slot)
Note: Modules with extended temperature range required

TPM:

TPM 2.0

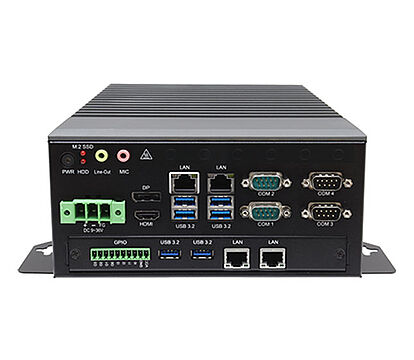

Interfaces:

USB: 4 × USB 3.2 Gen2 Type-A
Serial: 4 x RS-232/422/485, RS-232 selectable by default
Ethernet: 2 x 2.5 GbE LAN RJ-45 (i226LM, LAN1 supports iAMT)
Audio: 1 x Line-Out 3.5 mm jack, 1 x Mic-In 3.5 mm jack
Video: 1 x HDMI 2.0a, up to 4096 x 2160 @60Hz, 1 x DP++ 1.4A, up to 7680 x 4320 @60Hz
Power supply: 1 x 3-pin DC power input via terminal block
LED indicators: 1 x M.2 SSD, 1 x 2.5″ SATA
On/off switch: 1 x power button with LED indicator

Expansion slots:

1 x M.2 E-Key, 2230 for Wi-Fi / Bluetooth
1 x M.2 B-Key, 3042/3052 (PCIe 3.0 x1, USB 3.2 Gen1 / USB 2.0) for optional 4G/5G module
1 x Nano-SIM slot

Housing:

Coating in titanium gray on aluminum heat sink and black steel housing

Assembly:

Wall mounting (standard) & top-hat rail rear (optional)

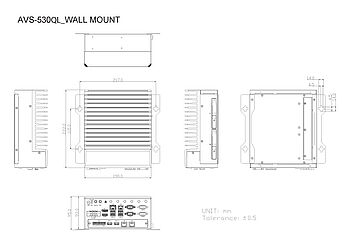

Dimensions:

222 x 217 x 95 mm

Ambient conditions:

Operating temperature: -20 to +60 °C (for 35 W CPU) / -20 to +50 °C (for 65 W CPU), ambient temperature with air flow (for industrial storage)
Storage temperature: -40 °C to +85 °C
Humidity: 10 % to 90 %.r.h., non-condensing

Certifications:

CE, FCC Class A

Operating systems:

Windows 10 IoT LTSC
Windows 11 IoT LTSC

Scope of delivery:

Device
Plug-in power supply unit

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
