Power supply:

9 VDC to 36 VDC

Display:

7" TFT LCD

Resolution:

1024 x 600 pixels
1024 x 600 pixels (optional high brightness)

Aspect ratio:

16:10

Brightness:

350 cd/m²
1000 cd/m² (optional high brightness)

Backlight:

30,000 h
30,000 h (optional High Brightness)

Colors:

16.2 M
16.2 M (optional High Brightness)

Reading angle:

H: 170° / V: 170°
H: 170° / V: 170° (optional high brightness)

Touch screen:

Projected capacitive touch

Processor:

Intel N97 processor, quad-core, 2.0 GHz
Intel Atom x7425E, quad-core, 1.5 GHz

RAM:

1 × DDR5-4800 MHz SO-DIMM, up to 32 GB

SSD/HDD:

1 × M.2 2280 M-Key slot (supports SATA 3.0 and PCIe 3.0 x1, standard: SATA type)

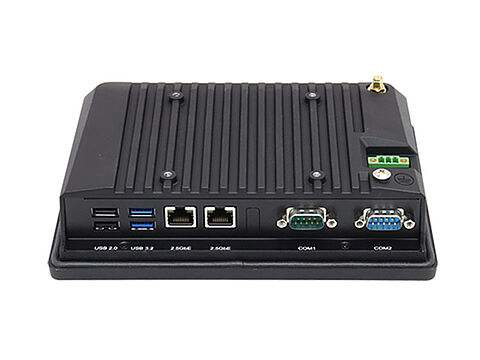

Interfaces:

USB: 2 × USB 3.2 Gen1 Type-A, 2 × USB 2.0 Type-A
Serial: 1 × DB9, supports RS-232/422/485 (COM1, BIOS selection, standard: RS-232), 1 × DB9, supports RS-232/422/485 (COM2, BIOS selection, standard: RS-232, optional)
Ethernet: 2 × RJ-45, supports Intel I226V/IT 2.5 GbE LAN
Power supply: 1 x terminal block, supports DC 9 to 36 V
Display output: 1 × HDMI 1.4, supports resolutions up to 4096 × 2160 @ 30 Hz

Expansion slots

1 × M.2 2230 E-Key (USB 2.0, PCIe ×1) for optional Wi-Fi/BT module
1 × M.2 3042/3052 B-Key (PCIe ×1, USB 3.2 Gen1, USB 2.0) for optional LTE/5G module
1 × Nano-SIM slot

Housing:

Die-cast aluminum housing

Assembly:

Panel mounting, VESA 100 x 100

Protection class:

IP66-compliant front panel

Dimensions (WxHxD):

197 x 135 x 48 mm

Weight:

1 kg

Ambient conditions:

Operation: Standard: -20 °C to -60 °C, High Brightness: 0 °C to -50 °C
Storage: -30 °C to +70 °C
10 % to 95 % at 40 °C, non-condensing

Certifications:

CE/FCC Class A

Operating systems:

Windows 10 IoT Enterprise 2021 LTSC or later
Windows 11 (21H2) or later

Scope of delivery:

Device
1 x power supply unit
1 x mounting material

Customs tariff number:

84715000

Manufacturer:

Aplex Technology Inc.
