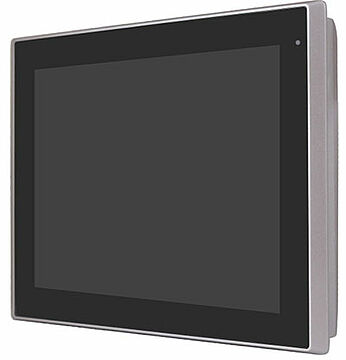

12.1 inch Panel PC ARCHMI-712(P)
This product has been discontinued.
It will be replaced by the Archmi8 series.
12.1" TFT LCD, 800 x 600 pixels
Projected capacitive or resistive touch
Processor: Intel Atom N2600 1.6 GHz
IP66 die-cast aluminum housing
- 12.1" SVGA TFT LCD graphics display 800 x 600 pixels
- Processor: Intel® Atom™ N2600 (1M cache, 1.6 GHz)
- Die-cast aluminum housing
- Flush frame design, IP66 front side
- Fanless cooling system
- Reading angle horizontal 160°, vertical 140°
The ARCHMI-7 series is based on an Intel Atom N2600 1.6 GHz or D2550 1.86 GHz processor.
The industrial panel PCs in this series are available in display sizes from 7" to 21.5", with either projected capacitive or resistive touch. The projected capacitive touch enables multi-touch operation with a corresponding operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. The front panels are absolutely flush with the die-cast aluminum housing. The housing is IP66 rated. The unique fanless thermal design of the die-cast aluminum housing enables effective temperature control. The ARCHMI IPC can be optionally equipped with a high-brightness LCD and/or optical bonding for an outstanding display, even under difficult conditions. Expansion cards for additional interfaces or WLAN can also be integrated. This series is particularly suitable when it comes to implementing simple HMI applications (e.g. browser display) or ensuring the use of an industrial thin client.
Power supply:
9 VDC to 36 VDC
Display:
12.1" TFT LCD
Resolution:
800 x 600 pixels
Option: 1024 x 768 pixels
Brightness:
350 cd/m²
Colors:
16,2 M
Reading angle:
H: 160° / V: 140°
Touch screen:
analog resistive or projected capacitive
Processor:
Intel® Atom™ N2600 (1.6 GHz)
Option: Intel® Atom™ D2550 (1.86 GHz) + upgrade to 4 GB RAM
RAM:
2 GB DDR3 800 MHz onboard
Option: Intel® Atom™ D2550 (1.86 GHz) + upgrade to 4 GB RAM
SSD/HDD:
1x SATA2 2.5"
Interfaces:
USB: 2 x USB 2.0 type A
Serial: COM1: RS232 / RS422 / RS485; COM2: RS232
Ethernet: 2x GbE 10/100/1000 Base T(X), RJ45
Power supply: pluggable 3-pin terminal strip
On/off switch: optional plug-in 2-pin terminal strip, see accessories IPC_DIO_2P
Expansion slots
1x Mini PCIe half height
Audio: 3.5 mm jack
Housing:
Die-cast aluminum
Assembly:

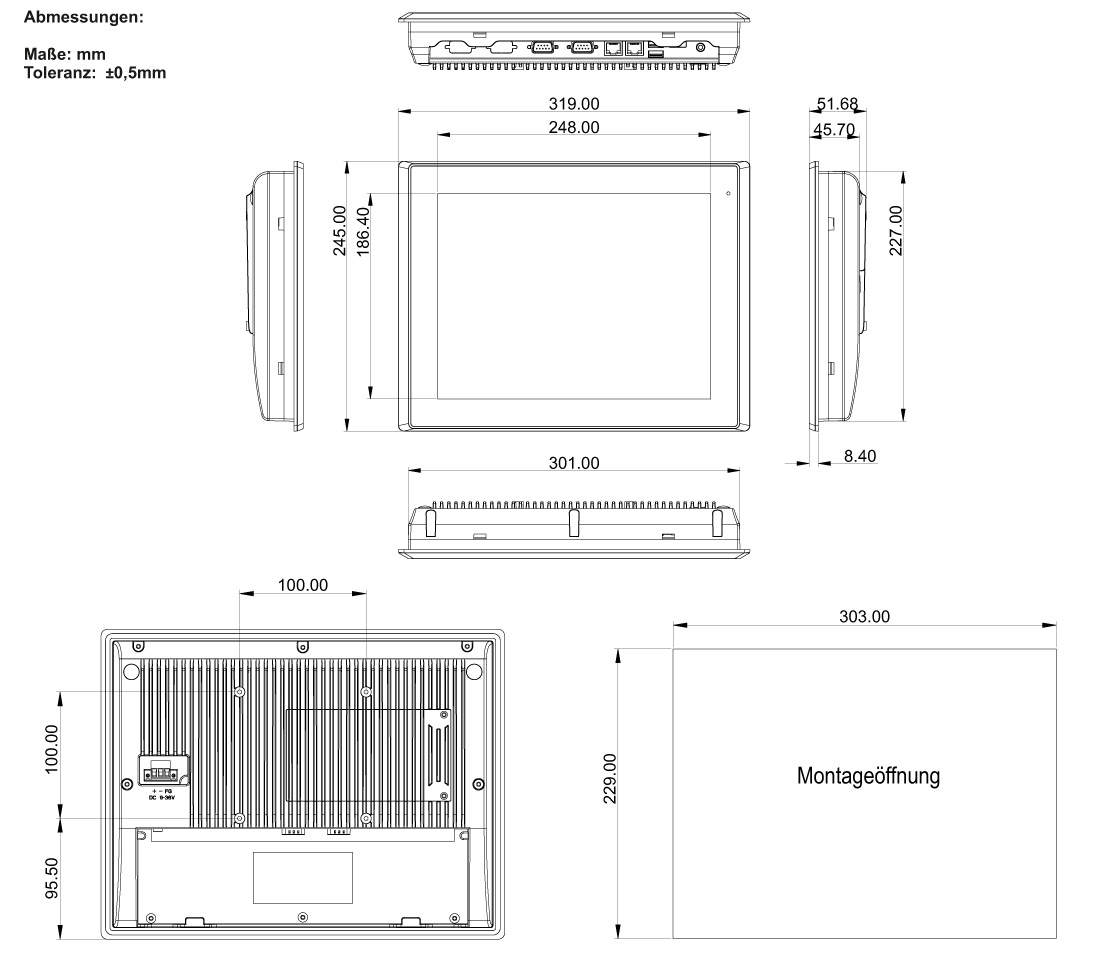

VESA 100 x 100; panel mounting
Protection class:
IP66 on the front
Weight:
approx. 2.3 kg
Ambient conditions:
Operation: 0 °C to +50 °C ;
Storage: -20 °C to +60 °C
10 % to 90 %.rH, non-condensing.
Certifications:
CE/FCC Class A, CB, UL
Operating systems:
Windows 7 Professional for Embedded Systems (FES) 32 Bit
Windows 7 Ultimate for Embedded Systems (FES) 32 Bit
Windows Embedded Standard 7 (P) 32-bit
Options:
HDMI
2 x USB 2.0
2 x USB 2.0 + 1x LAN
2 x USB 2.0 + 1x COM
2 x USB 2.0 + 1x HDMI
2 x USB 2.0 + 1x COM + 1x Power Switch + 1x Mini PCIe slot full size
2 x COM
2 x CAN (on request)
WLAN 2.4GHz ,BT4
WLAN 2.4GHz, 5GHz, BT4
Optical bonding
High Brightness Display
High Resolution (12" Upgrade to XGA LCD)
Extended temperature range WT1 -20°C to +60°C
Extended temperature range WT2 -20°C to +70°C
Scope of delivery:
Device
1 x Mounting material
1 x plug-in power supply unit
Manufacturer:
Aplex Technology Inc.
