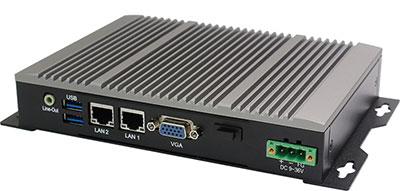

Fanless Box PC ACS-2310,
^Intel®^Celeron® N2930

This product is discontinued.
If you have any questions, please contact our technical application support team.

Expandable, fanless I/O design
Processor: ^Intel®^Celeron® N2930 (1.83 GHz)
RAM: Up to 8 GB DDR3L (1333 MHz)
Black metal housing with aluminum heat sink

Datasheet Technical support

Light to medium applications
Video interfaces: HDMI, VGA
Flexible input voltage 9 VDC to 36 VDC
Various Windows versions, e.g. Win 10 IOT 2019 LTSC

Product description

The ACS-231x series is based on an ^Intel®^Celeron® N2930 1.83 GHz processor.

The compact, passively cooled design enables effective temperature control, even in demanding environments. The ACS231x series offers enduring performance even under difficult conditions thanks to its solid metal housing. Expansion cards for additional interfaces, such as WLAN, can also be integrated. This high-performance yet highly energy-efficient processor family is used, for example, in factory automation, remote data acquisition and the most common industrial applications.

Technical data

Power supply:

9 VDC to 36 VDC

Power consumption:

max. 17.8 W

Processor:

^Intel®^Celeron® N2930 (1.83 GHz)

RAM:

Optional 4 GB or 8 GB DDR3L (1333 MHz, 204-pin SO-DIMM)

SSD/HDD:

1x SATA2 2.5"

Interfaces:

USB: 2x USB 3.0 type A, 4x USB 2.0 type A
Serial: COM1: RS232 / RS422 / RS485; COM2/COM3: RS232 DB-9
Ethernet: 2x GbE 10/100/1000 Base T(X), RJ45
Power supply: pluggable 3-pin terminal strip
Audio: 3.5 mm jack
Video: 1x HDMI, 1x VGA

Expansion slots:

2 x Mini-PCIe full height (1x shared with mSATA)

Housing:

Metal housing

Assembly:

Wall mounting

Protection class:

IP30

Weight:

approx. 1.0 kg

Ambient conditions:

Operation: 0 °C to +50 °C
Storage: -30 °C to +70 °C
10 % to 90 %.rH, non-condensing
