10.4 inch Panel PC Series-2B1
Intel®CoreTM i3 / i5 / i7 up to 10th gen.
10,4"" TFT-LCD, 1024 x 768
Projected-capacitive, resistive or without touch
Processor: Intel®CoreTM i3 / i5 / i7 up to 10th Gen.
IP65 die-cast aluminum housing
- 10.4" TFT LCD, 1024 x 768
- Processor: Intel®CoreTM i3 / i5 / i7 up to 10th Gen.
- Die-cast aluminum housing
- Frameless design, IP65 front side
- Fanless design
Wachendorff Panel PC Series-2
The Wachendorff Series-2 Panel PCs are available in display sizes ranging from 10" to 21.5" and can be equipped with projected capacitive, resistive or no touch. The projected capacitive touch display enables multi-touch operation with an appropriate operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. You can choose from a variety of different processors, from the energy-efficient Intel® Celeron® J4125 to a 12th generation Intel® CoreTM i7. Integrate up to 64 GB of RAM to meet the most demanding requirements. Particularly noteworthy is the extremely narrow display edge, which enables a virtually frameless design. The housings are IP65 rated at the front and have a very compact and robust design thanks to the specially constructed aluminum housing. The unique fanless thermal design of the die-cast aluminum housing enables effective temperature control.
Power supply:
Hollow plug 5.5 x 2.5 mm: 12 VDC to 36 VDC
Screw terminal: 12 VDC to 36 VDC
Power consumption:
i3 / i5 / i7 of the 6th and 7th gen. max. 95W
i3 / i5 / i7 of the 8th and 10th gen. max. 105W
Display:
10.4" TFT LCD
Resolution:
1024 x 768 pixels
Aspect ratio:
4:3
Brightness:
400 cd/m²
800 cd/m² (High Brightness)
Colors:
16,7 M
Reading angle:
80/80/80/80 (L/R/U/D)
Touch screen:
- Projected capacitive touch
- Resistive touch
- without touch
Glass hardness:
- 6H Projected capacitive touch
- 3H Resistive touch
- 7H without touch
Processor:
Intel® Core™ i3-6100U (2.3 GHz),
Intel® Core™ i5-6200U (2.7 GHz),
Intel® Core™ i7-6500U (2.8 GHz),
Intel® Core™ i5-7200U (3.1 GHz),
Intel® Core™ i7-7500U (3.5 GHz),
Intel® Core™ i3-8145U (3.9 GHz),
Intel® Core™ i5-8265U (3.9 GHz),
Intel® Core™ i7-8565U (4.6 GHz),
Intel® Core™ i3-10110U (4.1 GHz),
Intel® Core™ i5-10210U (4.2 GHz),
Intel® Core™ i7-10510U (4.9 GHz)
RAM:
Max. 32GB DDR4 for Intel® Core™ up to 7th gen.
Max. 64GB DDR4 for Intel® Core™ from 8th gen.
SSD/HDD:
Max. 1 TB

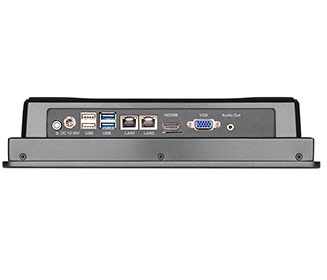

Interfaces:
USB: 2 x USB 2.0 type A, 2 x USB 3.0 type A
6-pin screw terminal: 2x RS-232 (up to 12 inches)
12-pin screw terminal: 2x RS-232, 1x RS-485, 3x GPIO (from 15 inches)
Ethernet: 2x RJ-45 Gigabit Ethernet, galvanically isolated
Wireless: 1x WLAN, 1x Bluetooth
Display: 1x HDMI, 1x VGA
Audio: 1x audio out, 3.5 mm jack
Sim Card Slot: Standard SIM (without function as standard)
WLAN: 1x 802.11 abgn/ac/d/e/i/h/w
Bluetooth: 1x Bluetooth 4.0
Expansion slots:
None

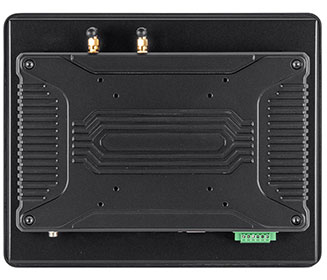

Housing:
Die-cast aluminum housing
Assembly:
VESA 75 x 75, VESA 100 x 100
Panel mounting
Protection class:
IP65 on the front
Dimensions (WxHxD):
265.6 mm x 213 mm x 61 mm
Weight:
approx. 2.7 kg
Certifications:
CE, RoHS, FCC, REACH
Ambient conditions:
Operation: -10 °C to +60 °C,
Optional WT: -20 °C to +70 °C
High Brightness: -20 °C to +70 °C
Storage: -20 °C to +70 °C
Up to 95 % r. h., non-condensing
Operating systems:
Windows® 10 IoT
Windows® 11 IoT
Options:
LTE
-20 °C to +70 °C (optionally customizable)
Scope of delivery:
1 x device
1 x mounting material
Customs tariff number:
8471 41 00
Manufacturer:
Wachendorff Prozesstechnik GmbH & Co. KG
