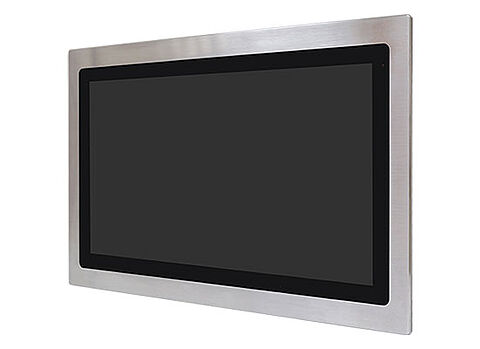

21.5 inch Panel PC FABS-921BG
21.5" TFT-LCD, 1920 x 1080 pixels
without touch function
Intel® Core™ i3-8145UE (2.2 GHz) / i5-8365UE (1.6 GHz)
IP66/IP69K-compliant front
- 21.5" TFT-LCD, 1920 x 1080 pixels
- without touch function
- Processor: Intel®Core™ i3-8145UE / i5-8365UE
- IP66/IP69K-compliant front panel
- Fanless cooling system
- Reading angle horizontal 178°, vertical 178°
The FABS-9 series is based on an 8th generation Intel® Core™-i processor.
The industrial panel PCs in this series, which are suitable for food production, are available in display sizes ranging from 12.1" to 21.5" and can be equipped with either projected capacitive or resistive touch. The projected capacitive touch enables multi-touch operation with an appropriate operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. The display is absolutely flush with the stainless steel front panel (type 304). The front has an IP69K (incl. IP66) rating and the fanless thermal design of the robust housing enables effective temperature control. The FABS IPCs can be optionally equipped with a high-brightness LCD and/or optical bonding for an outstanding display, even under the most difficult conditions. Expansion cards for additional interfaces or WLAN can also be integrated.
Power supply:
9 VDC to 36 VDC
Power consumption:
74 W
Display:
21.5" TFT LCD
Resolution:
1920 x 1080 pixels
Aspect ratio:
16:9
Brightness:
250 cd/m²
1000 cd/m² (optional high-brightness LCD)
Backlight:
50.000 h
Colors:
16,7 M
Reading angle:
H: 178° / V: 178°
Touch screen:
without touch function
Processor:
Intel®Core™ i3-8145UE (2.2 GHz)
Intel®Core™ i5-8365UE (1.6 GHz)
RAM:
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz
SSD/HDD:
1 x M.2 M-Key slot (supports PCIe/SATA3; 2242/2280, standard 2242)
Interfaces:
USB: 4 x USB 3.0 type A
Serial: 1 x DB-9 connection, including:
1 x RS-232 (RTS, Rx, Tx, CTS), pin 1 RTS/5V/12V selectable via jumper (COM1)
1 x RS-232 (Tx, Rx) / RS-422 / RS-485 (COM2) via Y-cable
Ethernet: 2x GbE 10/100/1000 Base T(X), RJ45
Audio: 1 x audio output
DP: 1 x DP
Power supply: 1 x 3-pin screw terminal connection, 1 x 2-pin power switch connection
Expansion slots
1 x Mini PCIe slot (full-size)
1 x Nano SIM card holder
Housing:
SUS304 stainless steel front panel (standard)
SUS316L stainless steel front panel (optional)
Rear housing made of die-cast aluminum
Assembly:
Panel mounting, VESA mounting 100 x 100
Protection class:
IP66/IP69K (front)
Dimensions (WxHxD):
573.8 mm x 378.8 mm x 59.8 mm
Weight:
8.2 kg
Ambient conditions:
Operation: 0 °C to +50 °C ; -20 °C to +60 °C
Storage: -30 °C to +70 °C
10% to 95 %.r.h., non-condensing.
Certifications:
CE/FCC Class A
EN 1672-2 certification for P model (optional)
Operating systems:
Windows® 10 IoT
Windows® 11 IoT
Options:
VESA stand
4G LTE/Wi-Fi 4/5/6+/Bluetooth
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
2 x COM (RS-232) (TB-528C2)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x power button (TB-528C1U2P1)
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 (TB-528E1U2)
Backup battery 21 W / 10.8 V / 1.95 Ah (3S1P)
Scope of delivery:
Device
1 x power supply unit
1 x mounting material
Customs tariff number:
84715000
Manufacturer:
Aplex Technology Inc.
